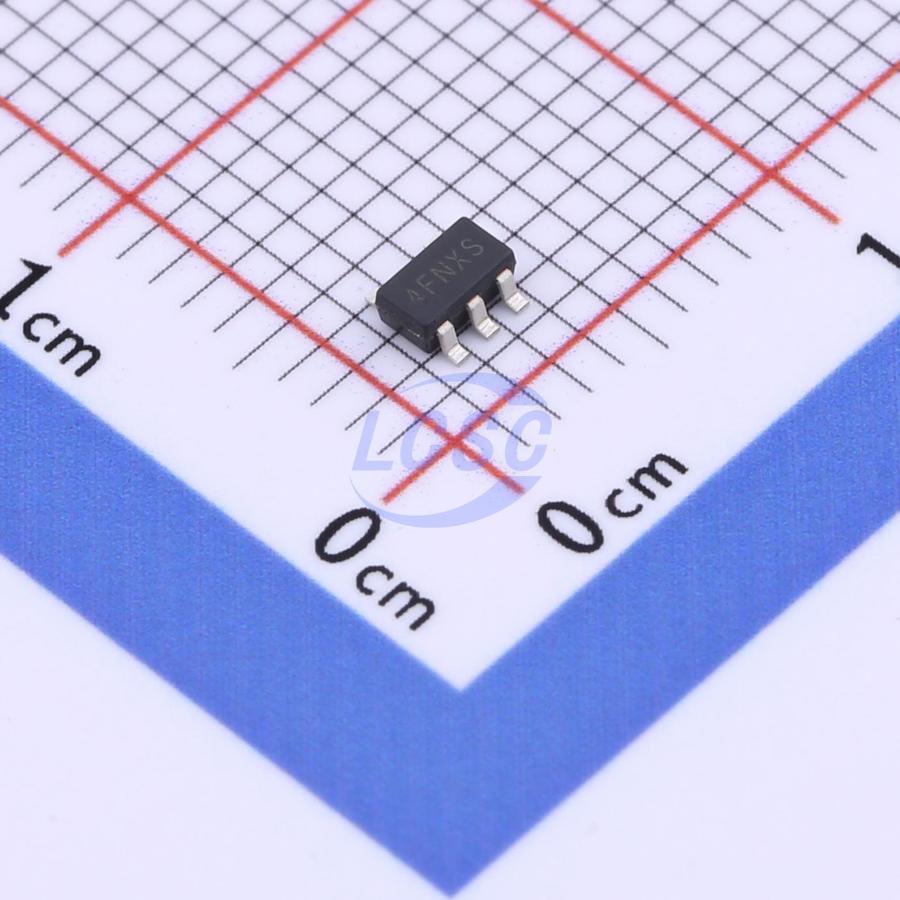

XC9140A331MR-G

The XC9140 series are step-up synchronous DC/DC converters that support ceramic capacitors and have an internal 0.6Ω N ch driver transistor and an internal 0.65Ω Pch synchronous rectifier switch transistor. PFM control enables a low quiescent current, making these products ideal for portable devices that require high efficiency. When the output voltage is 3.3V and the load current is 1mA, startup from an input voltage of V_IN = 0.9V is possible which means that these products can be used in applications that start using a single alkaline or nickel-metal hydride battery. A version with a UVLO (Under Voltage Lock-out) function is also available. This function enables the prevention of battery leakage by stopping IC’s operation when the input voltage is low. The standard product has a UVLO release voltage of 1.65V, 2.15V and a custom version with a release voltage selectable from between 1.65V to 2.2V, in steps of 0.05V, is also available.

Applications

• Mouses, Keyboards
• Bluetooth
• Household use Medical equipments
• Remote controls
• Game consoles
• Devices with 1~3 Alkaline, 1~3 Nickel Hydride, 1 Lithium and 1 Li-ion

Key features

• Output Voltage Setting: Without UVLO 1.8V - 5.0V (±2.0%), With UVLO 3.0V - 5.0V (±2.0%)
• Output Current: 80mA @ VOUT = 3.3V, VBAT = 1.8V
• Driver Transistor: 0.6Ω Nch driver transistor, 0.65Ω Pch synchronous rectifier switch transistor
• Supply Current: 6.3 μA (VBAT = VOUT + 0.5V)
• Control Method: PFM Control
• High speed transient response: 50mV @ VOUT = 3.3V, VBAT = 1.8V, IOUT = 1→50mA
• Functions: 350mA Load Disconnection (A,B Type), Bypass Mode (C Type), CL discharge (B Type), UVLO
• Ceramic Capacitor
• Operating Temperature Range: -40°C - 85°C
• Package: SOT - 25, USP - 6EL
• EU RoHS Compliant, Pb Free
