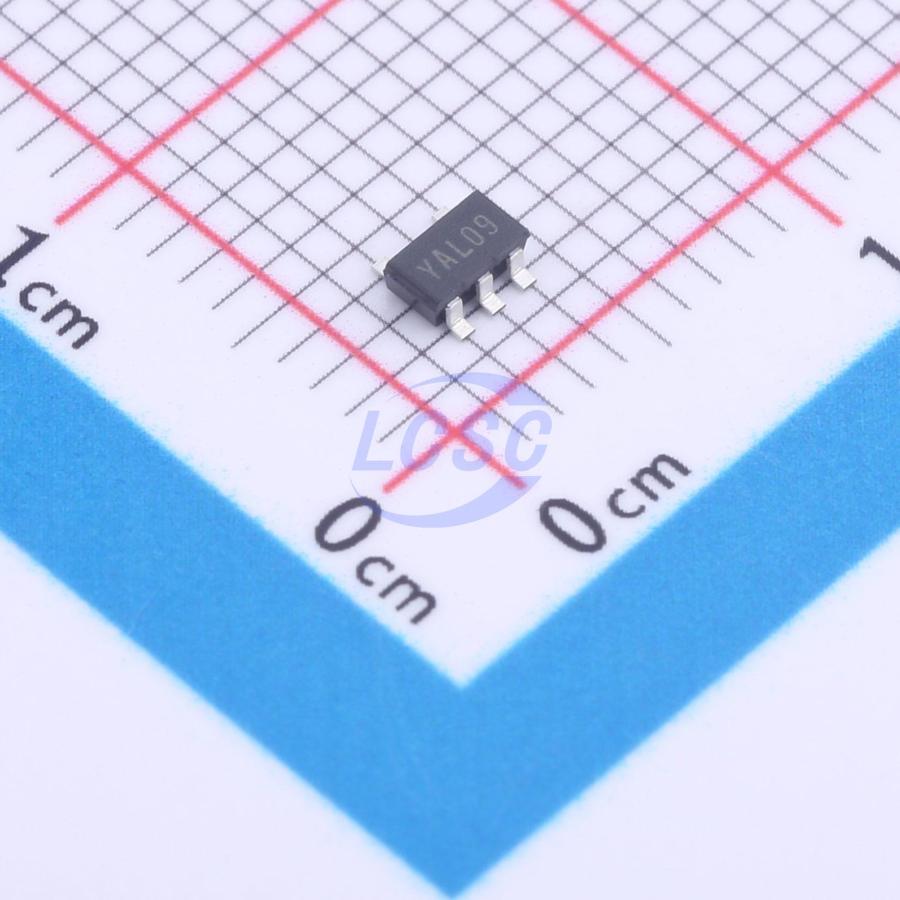

XC9142A36CMR-G

XC9141/XC9142 series are synchronous step-up DC/DC converters with a 0.3Ω(TYP.) N-channel driver transistor and a 0.3Ω(TYP.) synchronous P-channel switching transistor built-in. A highly efficient and stable current can be supplied up to 0.8A by reducing ON resistance of the built-in transistors. The series are able to start operation under the condition which has 0.9V input voltage to generate 3.3V output voltage with a 100Ω load resistor, suitable for mobile equipment using only one Alkaline battery or one Nickel metal hydride battery. The output voltage can be set from 1.8V to 5.5V (±2.0%) in steps of 0.1V. With the built-in oscillator, either 1.2MHz or 3.0MHz can be selected for suiting to your particular application. During the devices enter stand-by mode, A, D types prevent the application malfunction by CL Discharge Function which can quickly discharge the electric charge at the output capacitor (CL). B, E types is able to drive RTC etc. by Bypass Switch Function to maintain continuity between the input and output. C, F types is able to connect in parallel with other power supplies by Load Disconnection Function which breaks continuity between the input and output.

Applications

• Portable equipment
• Beauty & health equipment
• Wearable devices
• Game & Hobby
• PC Peripherals
• Devices with 1~3 Alkaline, 1~3 Nickel Hydride, 1 Lithium and 1 Li-ion

Key features

• Portable equipment
• Beauty & health equipment
• Wearable devices
• Game & Hobby
• PC Peripherals
• Devices with 1~3 Alkaline, 1~3 Nickel Hydride, 1 Lithium and 1 Li-ion
• Soft-start
• Load Disconnection Function (A,C,D,F type)
• CL Auto Discharge Function (A,D type)
• Bypass Switch Function (B,E type)
• Ceramic Capacitor
• -40°C~+85°C
• SOT-25,USP-6C,WLP-6-01
• EU RoHS Compliant, Pb Free
