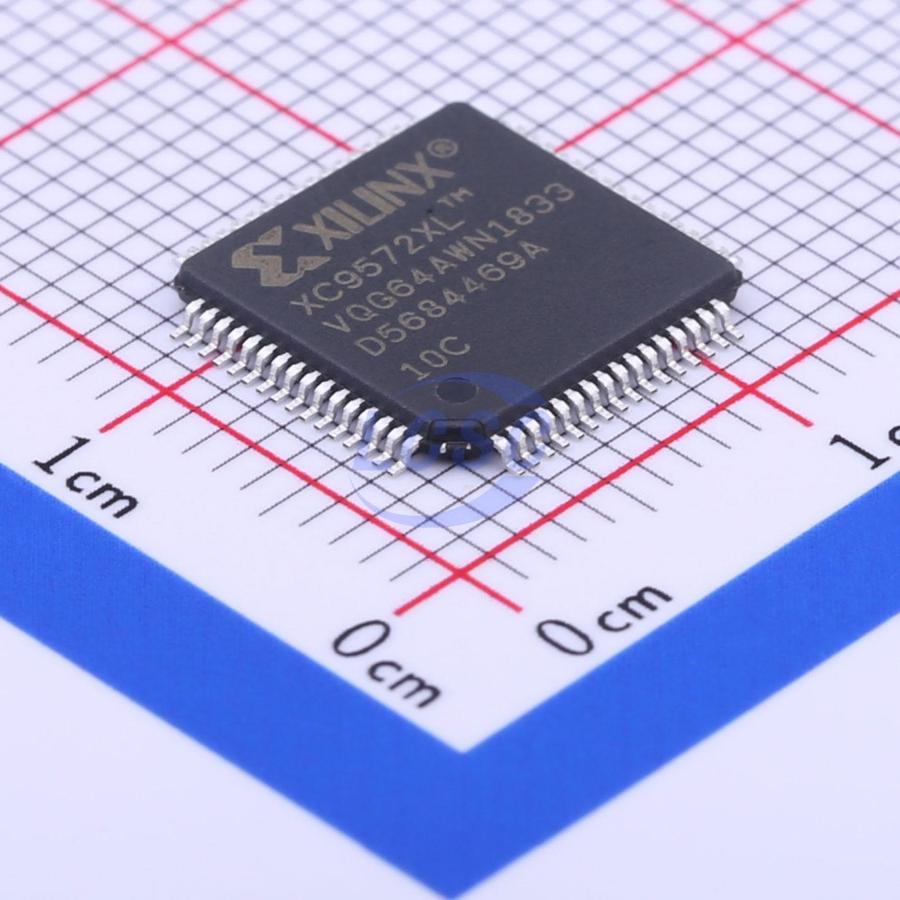

AMD/XILINX

XC9572XL-10VQG64C

LQFP-64(10x10) FPGAs (Field Programmable Gate Array) RoHS

LQFP-64(10x10)ROHS CompliantActive

High Performance CPLD

Manufacturer: AMD/XILINX
Manufacturer part #: XC9572XL-10VQG64C
Store part #: C90569
Package / case: LQFP-64(10x10)
Category: FPGAs (Field Programmable Gate Array)
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

999 in stock

#C90569

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,734.52	₹1,734.52
10+	₹1,494.29	₹14,942.90
30+	₹1,250.16	₹37,504.80
100+	₹1,127.66	₹1,12,766.00

Quantity (min 1)

1 × ₹1,734.52

₹1,734.52

excl. GST

₹2,046.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 160 per tray

XC9572XL-10VQG64C

₹1,734.52 for 1 + GST

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 2.8 g

Overview

The XC9572XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of four 54V18 Function Blocks, providing 1,600 usable gates with propagation delays of 5 ns.

Key features

5 ns pin-to-pin logic delays
System frequency up to 178 MHz
72 macrocells with 1,600 usable gates
Available in small footprint packages
44-pin PLCC (34 user I/O pins)
44-pin VQFP (34 user I/O pins)
48-pin CSP (38 user I/O pins)
64-pin VQFP (52 user I/O pins)
100-pin TQFP (72 user I/O pins)
Pb-free available for all packages
Optimized for high-performance 3.3V systems
Low power operation
5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals
3.3V or 2.5V output capability
Advanced 0.35 micron feature size CMOS
Fast FLASH technology
Advanced system features
In-system programmable
Superior pin-locking and routability with Fast CONNECT II switch matrix
Extra wide 54-input Function Blocks
Up to 90 product-terms per macrocell with individual product-term allocation
Local clock inversion with three global and one product-term clocks
Individual output enable per output pin
Input hysteresis on all user and boundary-scan pin inputs
Bus-hold circuitry on all user pin inputs
Full IEEE Standard 1149.1 boundary-scan (JTAG)
Fast concurrent programming
Slew rate control on individual outputs
Enhanced data security features
Excellent quality and reliability
Endurance exceeding 10,000 program/erase cycles
20 year data retention
ESD protection exceeding 2,000V
Pin-compatible with 5V-core XC9572 device in the 44-pin PLCC package and the 100-pin TQFP package
