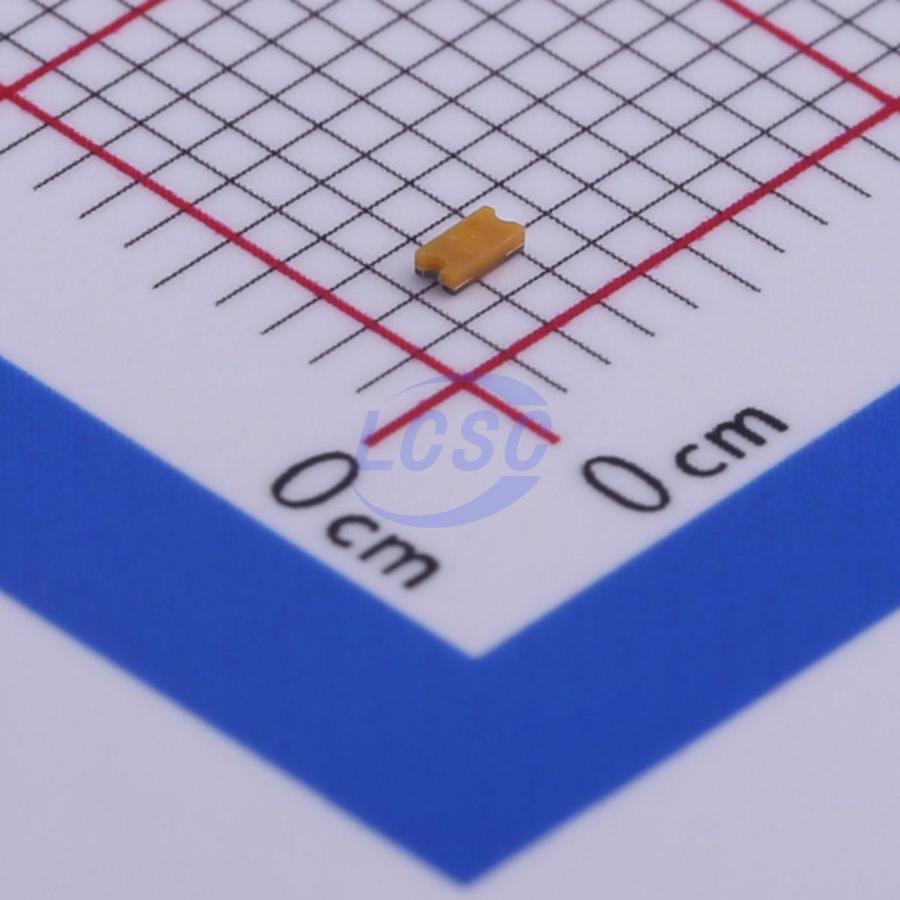

XGD10603MR
40VC Clamp ESD DIODE 0603
ESD DIODE 40VC 0603
- Manufacturer
- Littelfuse
- Manufacturer part #
- XGD10603MR
- Store part #
- C434739
- Package / case
- 0603
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
108 in stock
#C434739
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.63 | ₹65.63 |
| 10+ | ₹52.38 | ₹523.80 |
| 30+ | ₹46.73 | ₹1,401.90 |
| 100+ | ₹39.77 | ₹3,977.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹65.63
₹65.63
excl. GST
₹77.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XGD10603MR
₹65.63 for 1 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -65℃~+125℃
- Number of Channels
- 1
- type
- ESD
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
XTREME-GUARDTM ESD Suppressors protect sensitive electronic equipment against extreme ESD conditions, in very small 0402 and 0603 footprints. This series product is specifcally designed to suppress fast-rising ESD transients up to 30 kV while adding virtually no capacitance to the circuit, which helps preserve signal integrity and minimize data loss. It is a RoHS compliant, halogen free, and Pb free ESD Suppressor.
Applications
- Wearable Devices
- Notebooks/Laptops/PCs
- Gaming Consoles
- Smart TVs
- Smart Phones
- Tablets
- Set Top Boxes
- Networking and Wireless Hardware
- Stationary and Portable Medical Devices
Key features
- High ESD Rating up to 30kV Contact/Air Discharge
- RoHS compliant, lead-free and halogen-free
- Ultra-low capacitance
- Low leakage current
- Fast response time
- Bi-directional
- Withstands multiple ESD strikes
- Compatible with pick-and-place processes
- Available in 1000, 5000, and 10000 piece reels (EIA-RS481)
- High rated voltage up to 32V maximum
- High operating temperature at 125°C
