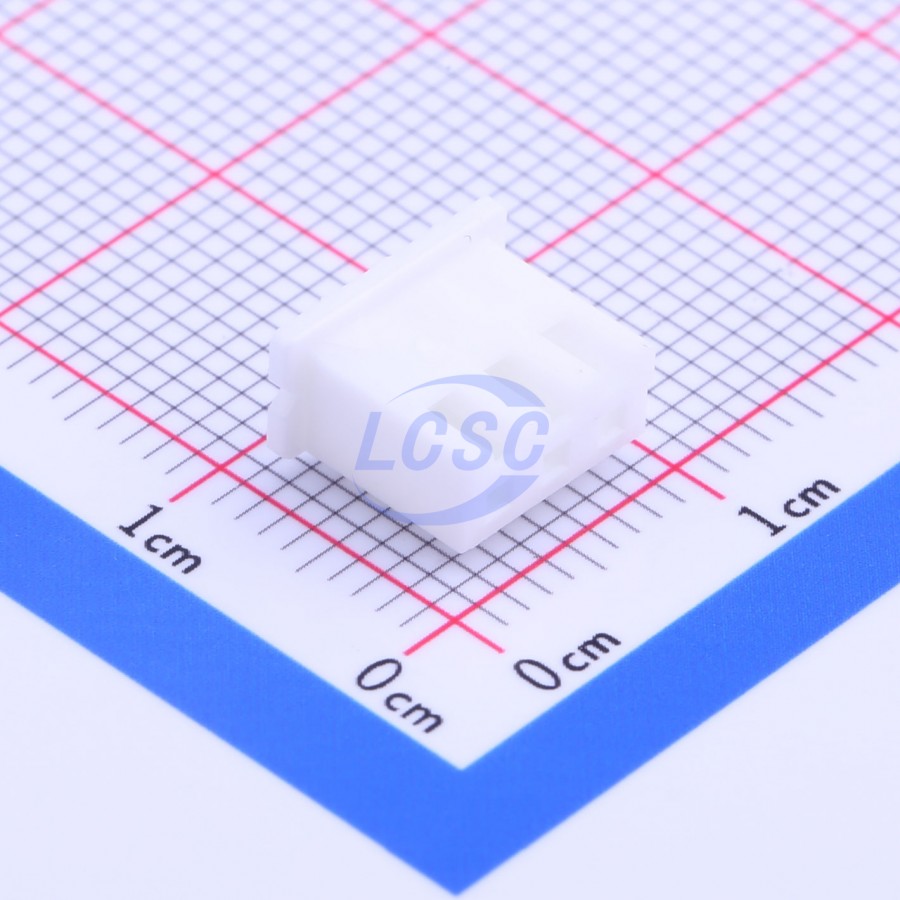

XHP-3
Connector Housing 3 Position 2.5mm Pitch Single Row XH Series PA6 -25℃~+85℃
PopularP=2.5mmROHS3 CompliantActive
CONN HOUSING 3POS 2.5mm SINGLE ROW XH
- Manufacturer
- JST
- Manufacturer part #
- XHP-3
- Store part #
- C144402
- Package / case
- P=2.5mm
- Category
- Rectangular Connector Housings
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,28,000 in stock
#C144402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.59 | ₹71.80 |
| 200+ | ₹2.96 | ₹592.00 |
| 1,000+ | ₹2.58 | ₹2,580.00 |
| 2,000+ | ₹2.37 | ₹4,740.00 |
| 10,000+ | ₹2.20 | ₹22,000.00 |
| 20,000+ | ₹2.09 | ₹41,800.00 |
20 × ₹3.59
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
XHP-3
₹71.80 for 20 + GST
Specifications
- Pitch
- 2.5mm
- Flame Retardant Rating
- UL94V-0
- Number of Rows
- 1
- With Wings
- Without Fins
- Operating Temperature
- -25℃~+85℃
- Reference Series
- XH
- Holes Structure
- 1x3P
- Color
- White
- Plastic Material
- PA6
- Number of PINs Per Row
- 3
- With Locker
- Non-Latching
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.414 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XH2.54-3Y#C18185523hanxia · P=2.5mm | hanxia | P=2.5mm | 13,300 | ₹1.05 · 13,300 in stock | View |
 | TJC3-3Y#C22374318DLL · P=2.5mm | DLL | P=2.5mm | 1,950 | ₹1.36 · 1,950 in stock | View |
 | A2501H-3P#C339272CJT(Changjiang Connectors) · P=2.5mm | CJT(Changjiang Connectors) | P=2.5mm | 39,100 | ₹1.11 · 39,100 in stock | View |
 | C254F21-W3P11#C41409825JXTCONN · P=2.5mm | JXTCONN | P=2.5mm | 7,700 | ₹1.08 · 7,700 in stock | View |
 | CXHP-3N-JK#C42422465JXTCONN · P=2.5mm | JXTCONN | P=2.5mm | 6,100 | ₹1.59 · 6,100 in stock | View |
