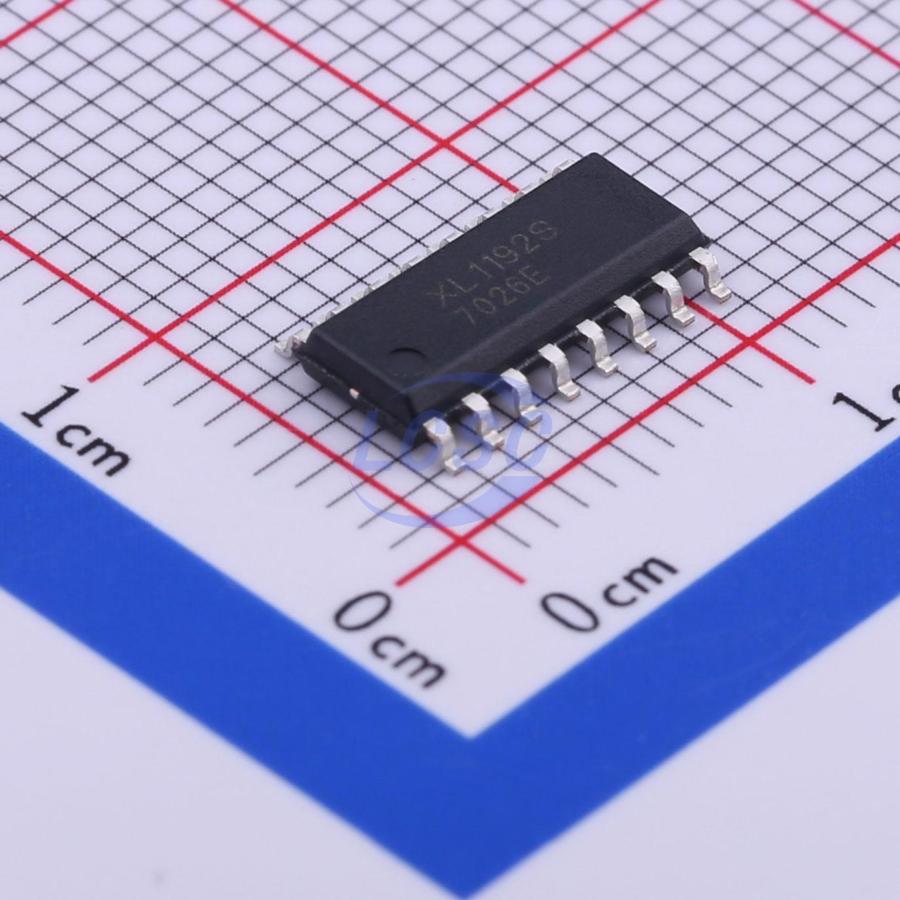

XL1192S

The XL1192 conforms to the HBS(Home Bus) specification, and has functions for the reception and transmission of data. AMI is adopted for the waveforms of signals handled by the transmission and reception units, designed for connection to twisted-pair lines. The IC can be driven by a single 5V power supply, and incorporates an output transistor to reduce the number of external components required. Telephone equipment, security equipment, audio or video equipment, air-conditioning equipment, and a wide range of other devices can be connected to a bus line to enable mutual communications.

Applications

• Telephony equipment
• Security equipment
• Audio and video devices
• Air-conditioning equipment
• Wide range of other equipment and devices

Key features

• Can be driven by a single 5V power supply
• Built in Current Limit Function
• Easy circuit design
• Few external components
• High reliability
• Available in SOOP16/DIP16 package
