XINLUDADatasheet (PDF)

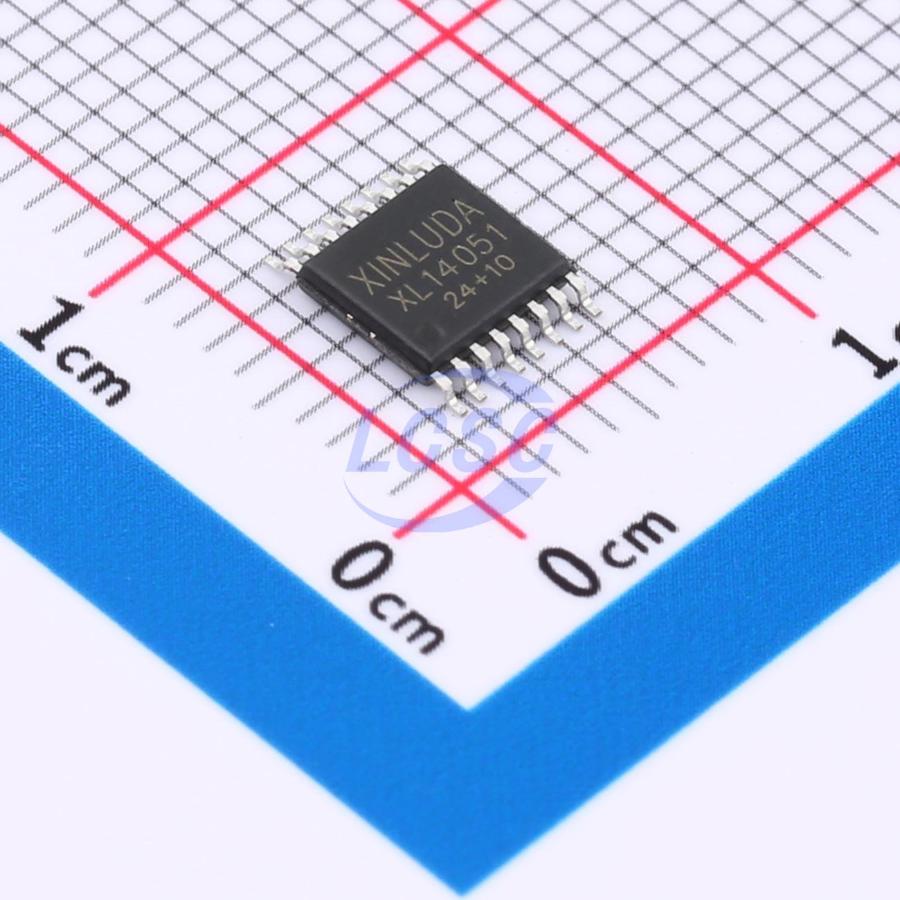

XL14051BDTR
1.05kΩ 3V~18V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS CompliantActive
Analog Multiplexers/Demultiplexers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL14051BDTR
- Store part #
- C42379138
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,315 in stock
#C42379138
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.59 | ₹72.95 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹10.02 | ₹1,503.00 |
| 500+ | ₹8.86 | ₹4,430.00 |
| 2,500+ | ₹7.95 | ₹19,875.00 |
| 5,000+ | ₹7.49 | ₹37,450.00 |
5 × ₹14.59
₹72.95
excl. GST
₹86.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL14051BDTR
₹72.95 for 5 + GST
Specifications
- Features
- Fault protection;Level shifting
- Operating Temperature
- -40℃~+85℃
- Ron
- 1.05kΩ
- Voltage - Supply
- 3V~18V
- Propagation Delay
- 90ns
- Con
- 60pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.45 g
Overview
The XL/XD14051, XL/XD14052, and XL/XD14053 analog multiplexers are digitally−controlled analog switches. The XL/XD14051 effectively implements an SP8T solid state switch, the XL/XD14052 a DP4T, and the XL/XD14053 a Triple SPDT. All three devices feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.
Key features
- Triple Diode Protection on Control Inputs
- Switch Function is Break Before Make
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Analog Voltage Range (VDD - VEE) = 3.0 to 18 V
- Linearized Transfer Characteristics
- Low−noise -12 nV/Cycle, f ≥ 1.0 kHz Typical
