XINLUDA

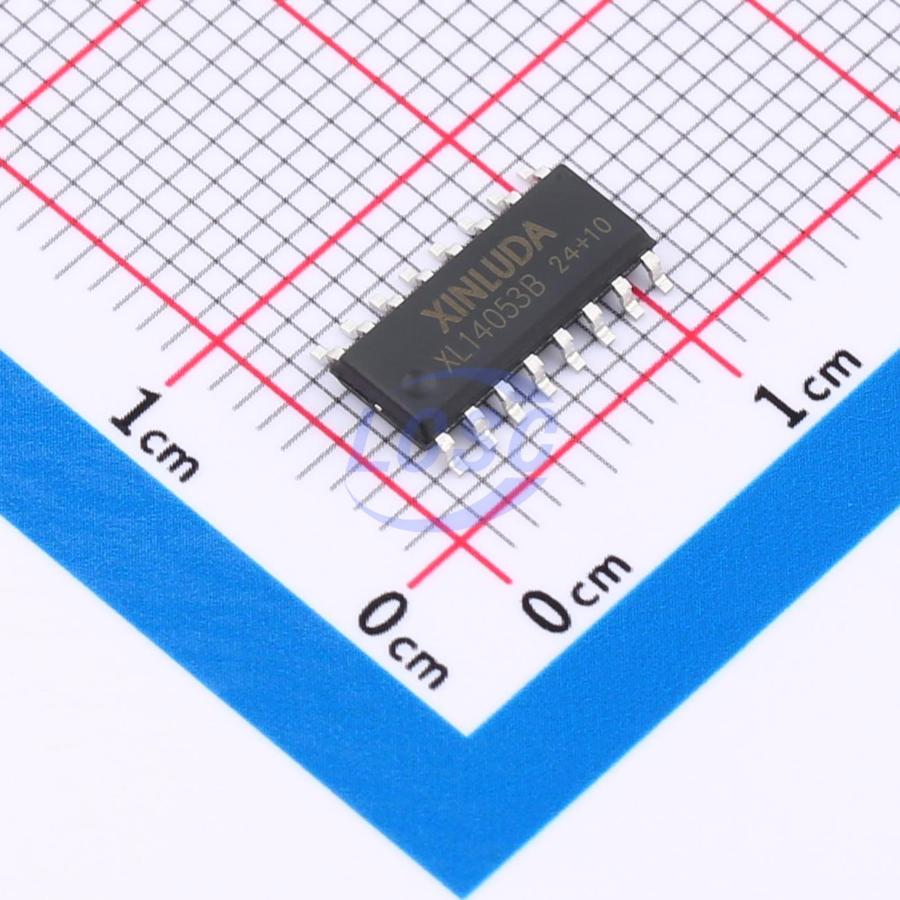

XL14053BDR

80Ω 3 3V~18V SOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

SOP-16ROHS CompliantActive

Analog Multiplexers/Demultiplexers

Manufacturer: XINLUDA
Manufacturer part #: XL14053BDR
Store part #: C42379143
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,465 in stock

#C42379143

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.46	₹57.30
50+	₹9.01	₹450.50
150+	₹7.78	₹1,167.00
500+	₹6.87	₹3,435.00
2,500+	₹6.36	₹15,900.00
5,000+	₹5.99	₹29,950.00

Quantity (min 5, multiples of 5)

5 × ₹11.46

₹57.30

excl. GST

₹67.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL14053BDR

₹57.30 for 5 + GST

Specifications

Features: Fault protection;Level shifting
Operating Temperature: -40℃~+85℃
Ron: 80Ω
Number of Channels: 3
Voltage - Supply: 3V~18V
Propagation Delay: 6ns
Con: 17pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.561 g

Overview

The XL/XD14051, XL/XD14052, and XL/XD14053 analog multiplexers are digitally−controlled analog switches. The XL/XD14051 effectively implements an SP8T solid state switch, the XL/XD14052 a DP4T, and the XL/XD14053 a Triple SPDT. All three devices feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.
