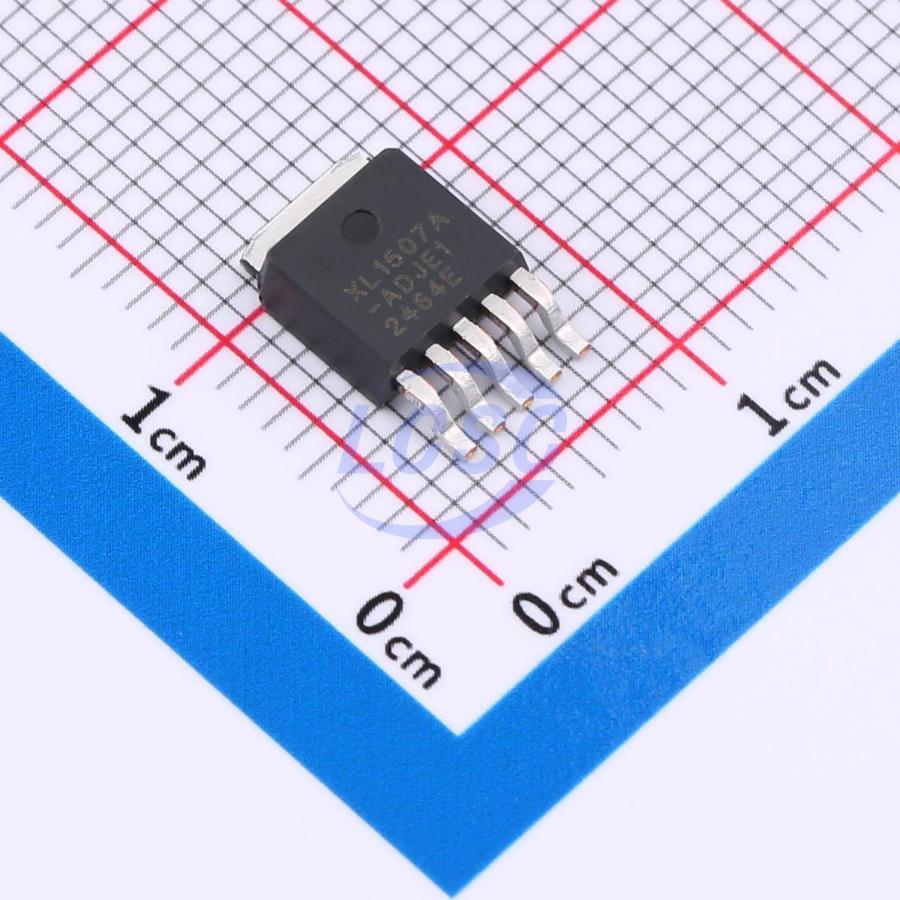

XL1507A-ADJE1

XL1507A is a high-voltage, high-efficiency step-down DC-DC switching converter operating at a fixed 150KHz switching frequency with an output current capability of up to 3A. It supports a wide input voltage range of 4.5V~50V and up to 100% duty cycle output. The integrated loop compensation module effectively reduces the number of external components required, helping to lower overall power system cost and save PCB space. The device is available in an ADJ adjustable output voltage version and a 5.0V fixed output voltage version. The IC integrates thermal shutdown protection, output current limiting protection, and short-circuit protection. When short-circuit protection is activated, the switching frequency is reduced from 150KHz to approximately 30KHz.

Applications

• Automotive Electronics
• Industrial Control
• Communication Equipment
• IoT

Key features

• Recommended operating voltage: 4.5V~50V
• Available in ADJ adjustable and 5.0V fixed output versions
• Output voltage range: 1.23V~48V
• Maximum duty cycle: 100%
• Feedback reference voltage accuracy: ±1.5%
• Minimum input-to-output voltage differential: 1.5V
• Fixed 150KHz switching frequency
• Maximum 3A switching current
• Integrated high-voltage power transistor
• Efficiency up to 90% and above
• Excellent line regulation and load regulation
• EN pin with TTL shutdown capability
• Integrated thermal shutdown protection
• Integrated current limiting protection
• Integrated short-circuit protection
• Operating temperature range: -40℃ to 125℃
• Device HBM ESD classification: Class 3B
• TO252-5L package
