GREENMICRO

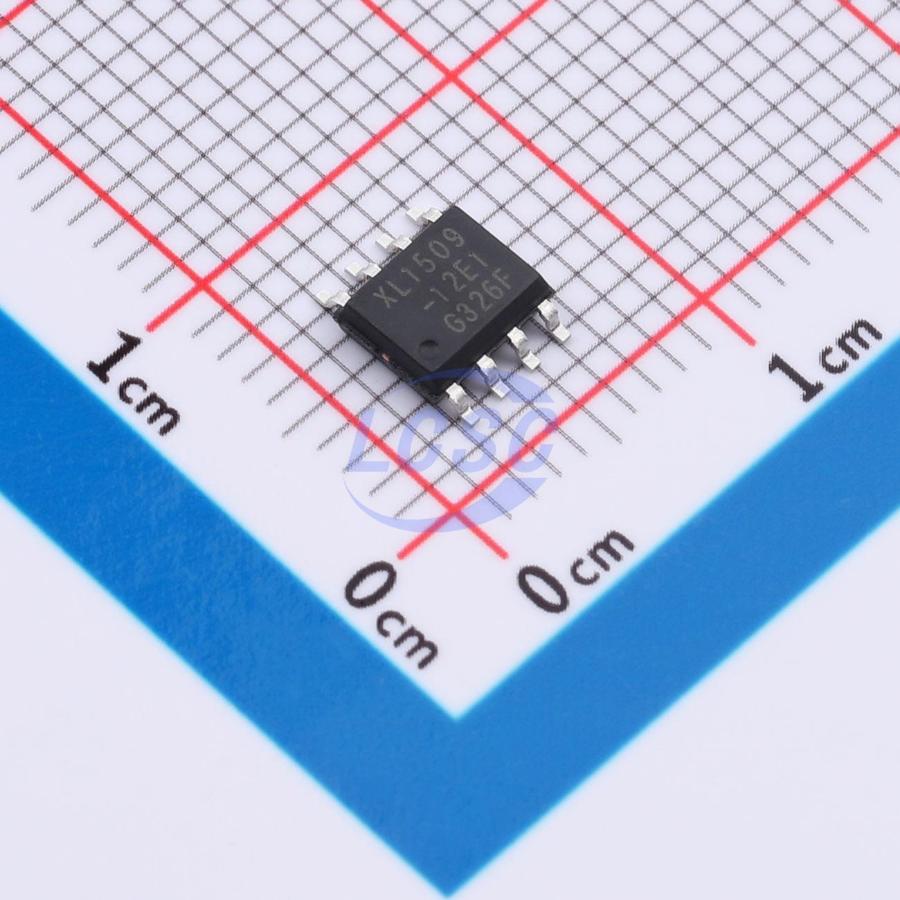

XL1509-12BS

150kHz Step-down type Fixed 12V 3A SOP-8 Voltage Regulators - DC DC Switching Regulators

SOP-8RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: XL1509-12BS
Store part #: C53055749
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,280 in stock

#C53055749

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
5+	₹21.50	₹107.50
50+	₹16.86	₹843.00
150+	₹14.87	₹2,230.50
500+	₹12.38	₹6,190.00
2,500+	₹11.27	₹28,175.00
5,000+	₹10.61	₹53,050.00

Quantity (min 5, multiples of 5)

5 × ₹21.50

₹107.50

excl. GST

₹126.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL1509-12BS

₹107.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 150kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Fixed
Topology: Buck
Operating Voltage: 4.5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 12V
Output Current: 3A
Quiescent Current: 5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.28 g

Overview

The 1509 is a fixed-frequency 150KHz PWM DC-DC switching regulator with 2A output current drive capability, featuring high efficiency, low ripple, high line regulation, and load regulation. The device operates in PWM modulation mode with a linearly adjustable duty cycle ranging from 0 to 100%. It integrates a fixed-frequency oscillator and frequency compensation module, requiring minimal external components. The chip also incorporates enable control with hysteresis, over-temperature protection, over-current protection, and secondary over-current protection. When secondary over-current protection is triggered, the built-in frequency reduction function reduces the operating frequency from 150KHz to 50KHz.

Applications

LCD TVs and displays
Digital photo frames
Set-top boxes
Routers
Communication equipment power supply

Key features

4.5V to 40V input voltage range
Regulated output available in 3.3V, 5V, 12V fixed versions and adjustable version with 1.23V to 37V adjustment range
Duty cycle adjustable from 0 to 100%
Minimum saturation voltage drop of 1.5V
150KHz fixed operating frequency
3A fixed current output capability
ON/OFF hysteresis switching function
Built-in over-temperature protection and overcurrent protection
Built-in frequency compensation
High efficiency, high line regulation and load regulation
