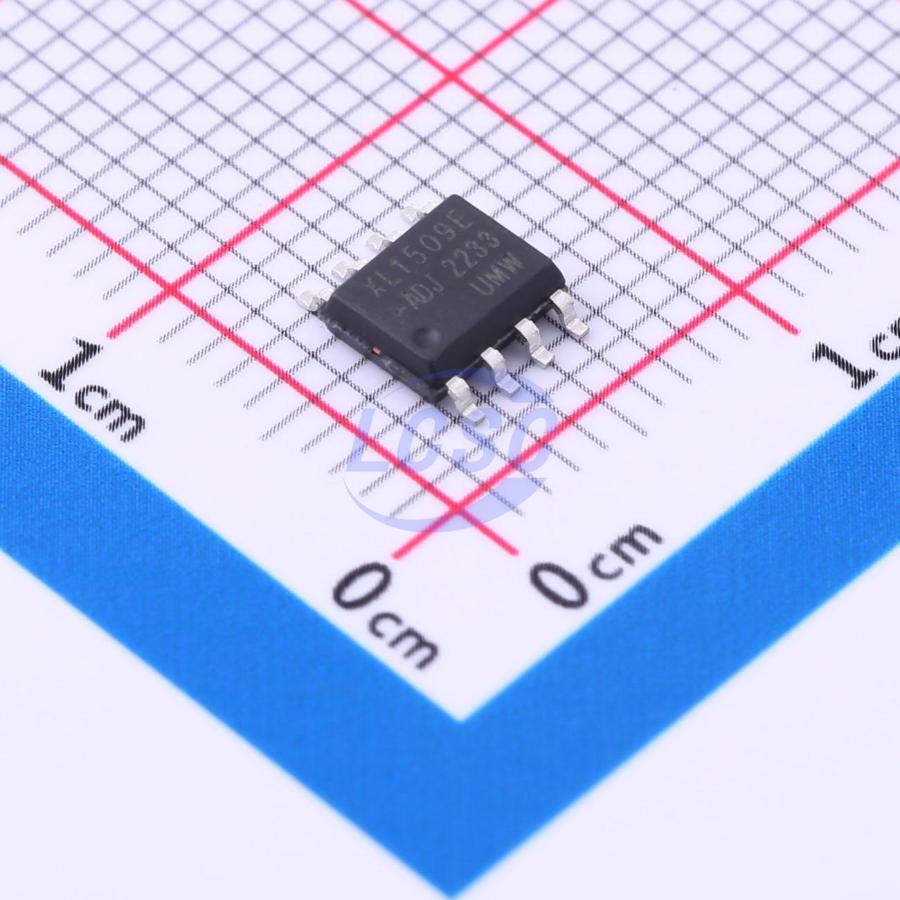

XL1509E-ADJ
150kHz Step-down type Adjustable 1.23V~37V 2A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS3 CompliantActive
150KHz Fixed Frequency PWM Buck DC/DC Converter
- Manufacturer
- UMW
- Manufacturer part #
- XL1509E-ADJ
- Store part #
- C5185876
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,460 in stock
#C5185876
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.45 | ₹182.25 |
| 50+ | ₹28.58 | ₹1,429.00 |
| 150+ | ₹25.20 | ₹3,780.00 |
| 500+ | ₹21.00 | ₹10,500.00 |
| 2,500+ | ₹18.23 | ₹45,575.00 |
| 5,000+ | ₹17.11 | ₹85,550.00 |
5 × ₹36.45
₹182.25
excl. GST
₹215.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL1509E-ADJ
₹182.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~37V
- Output Current
- 2A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The XL1509 is a 150KHz fixed-frequency PWM step-down DC/DC converter capable of driving a 2A load, featuring high efficiency, low ripple, and excellent line and load regulation. This regulator requires minimal external components, is easy to use, and incorporates internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit allows linear duty cycle adjustment from 0 to 100%. An enable function and overcurrent protection are integrated internally. When the secondary current limiting function is triggered, the operating frequency reduces from 150KHz to 50KHz. A built-in compensation module minimizes the number of external components required.
Applications
- LCD monitors and LCD TVs
- Digital photo frames
- Set-top boxes
- ADSL modems
- Telecom/networking equipment
Key features
- 4.5V to 40V wide input voltage range
- Available in 3.3V, 5V, 12V fixed output and adjustable versions
- Output voltage adjustable from 1.23V to 37V
- 100% maximum duty cycle
- 1.5V minimum dropout voltage
- Fixed 150KHz switching frequency
- 2A continuous output current capability
- Internally optimized power transistor
- High efficiency
- Excellent line and load regulation
- TTL shutdown capability
- ON/OFF pin with hysteresis
- Built-in thermal shutdown
- Built-in current limiting
- Built-in secondary current limiting
- Available in SOIC8 package
