XLSEMIDatasheet (PDF)

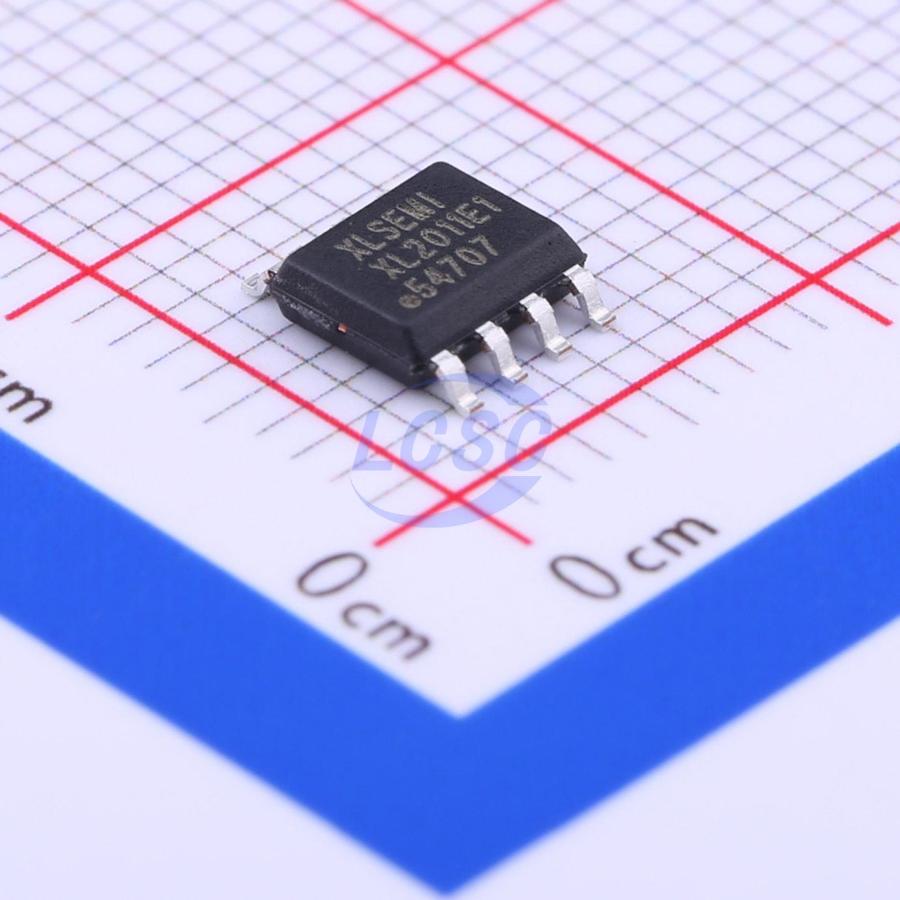

XL2011E1
150kHz Step-down type Fixed 5V 2.1A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS CompliantActive
5V/2.1A 150KHz 45V Buck DC to DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL2011E1
- Store part #
- C73337
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,400 in stock
#C73337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.41 | ₹272.05 |
| 50+ | ₹41.52 | ₹2,076.00 |
| 150+ | ₹35.92 | ₹5,388.00 |
| 500+ | ₹29.04 | ₹14,520.00 |
| 2,500+ | ₹25.81 | ₹64,525.00 |
| 4,000+ | ₹23.88 | ₹95,520.00 |
5 × ₹54.41
₹272.05
excl. GST
₹321.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XL2011E1
₹272.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Protection latch;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 8V~45V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 2.1A
- Quiescent Current
- 4.7mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.267 g
Overview
The XL2011 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.1A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The XL2011 built in output short protection function. When short protection function happens, the chip will be shutdown. An internal compensation block is built in to minimize external component count.
Applications
- Car Charger
- Battery Charger
- USB Power Supply
Key features
- Wide 8V to 45V input voltage range
- Fixed 5V output voltage
- Maximum 2.1A output current
- Fixed 150KHz switching frequency
- Internal optimize power MOSFET
- High efficiency up to 92%
- Built in output short shutdown function
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in current limit function
- Available in SOP8 package
