XLSEMIDatasheet (PDF)

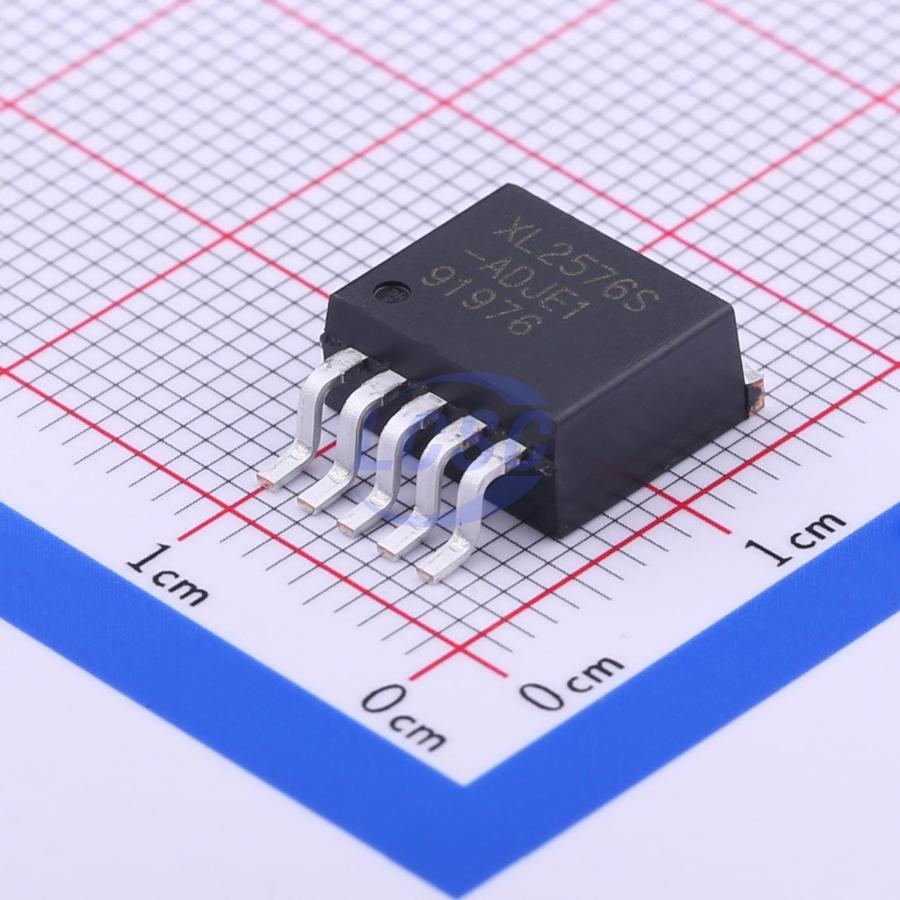

XL2576S-ADJE1
52kHz Step-down type Adjustable 1.23V~37V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators
TO-263-5RoHSActive
3A 52KHz 40V Buck DC to DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL2576S-ADJE1
- Store part #
- C73349
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,311 in stock
#C73349
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.85 | ₹65.85 |
| 10+ | ₹51.07 | ₹510.70 |
| 30+ | ₹44.56 | ₹1,336.80 |
| 100+ | ₹36.73 | ₹3,673.00 |
| 500+ | ₹29.34 | ₹14,670.00 |
| 800+ | ₹27.39 | ₹21,912.00 |
1 × ₹65.85
₹65.85
excl. GST
₹77.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
XL2576S-ADJE1
₹65.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 52kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~37V
- Output Current
- 3A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.114 g
Overview
The XL2576 is a 52 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.
Applications
- LCD Monitor and LCD TV
- Digital Photo Frame
- Set-up Box
- ADSL Modem
- Telecom / Networking Equipment
Key features
- Wide 4.5V to 40V Input Voltage Range 5V, 12V and adjustable versions Output Adjustable from 1.23V to 37V
- Maximum Duty Cycle 100%
- Minimum Drop Out 1.5V
- Fixed 52KHz Switching Frequency
- 3A Constant Output Current Capability
- Internal Optimize Power Transistor High efficiency Excellent line and load regulation
- TTL shutdown capability
- EN pin with hysteresis function
- Built in thermal shutdown function
- Built in current limit function
- Available in TO220-5L or TO263-5 packages
