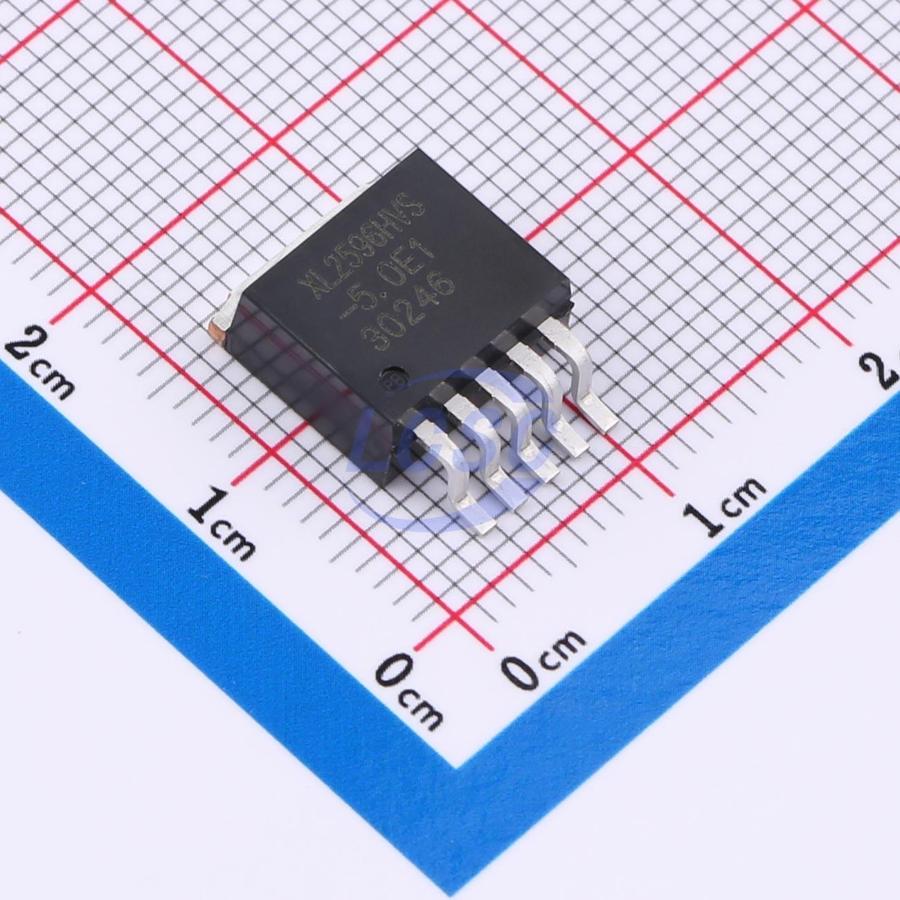

XL2596HVS-5.0E1

XL2596HVS is a high-voltage, high-efficiency step-down DC-DC switching converter operating at a fixed 150KHz switching frequency with an output current capability of up to 3A. The device supports a wide input voltage range of 4.5V~50V and up to 100% duty cycle output. The integrated loop compensation module helps reduce the number of external components required, lowering overall power system cost and saving board space. The converter is available in an ADJ adjustable output voltage version as well as fixed output voltage versions of 3.3V, 5.0V, and 12V. The IC integrates thermal shutdown protection, output current limiting protection, and short-circuit protection. When short-circuit protection is activated, the switching frequency is reduced from 150KHz to approximately 30KHz.

Applications

• Automotive Electronics
• Industrial Control
• Communication Equipment
• IoT

Key features

• Recommended operating voltage: 4.5V~50V
• Available in ADJ, 3.3V, 5.0V, and 12V output voltage versions
• Output voltage range: 1.23V~48V
• Maximum duty cycle: 100%
• Feedback reference voltage accuracy: ±1.5%
• Minimum input-to-output voltage differential: 1.5V
• Fixed 150KHz switching frequency
• Maximum 3A switching current
• Built-in high-voltage power transistor
• Efficiency up to 90% and above
• Excellent line regulation and load regulation
• EN pin TTL shutdown function
• Built-in thermal shutdown protection
• Built-in current limiting protection
• Built-in short-circuit protection
• Operating temperature range: -40℃ to 125℃
• Device HBM ESD classification: Class 3B
• TO263-5L package
