XL3005E1

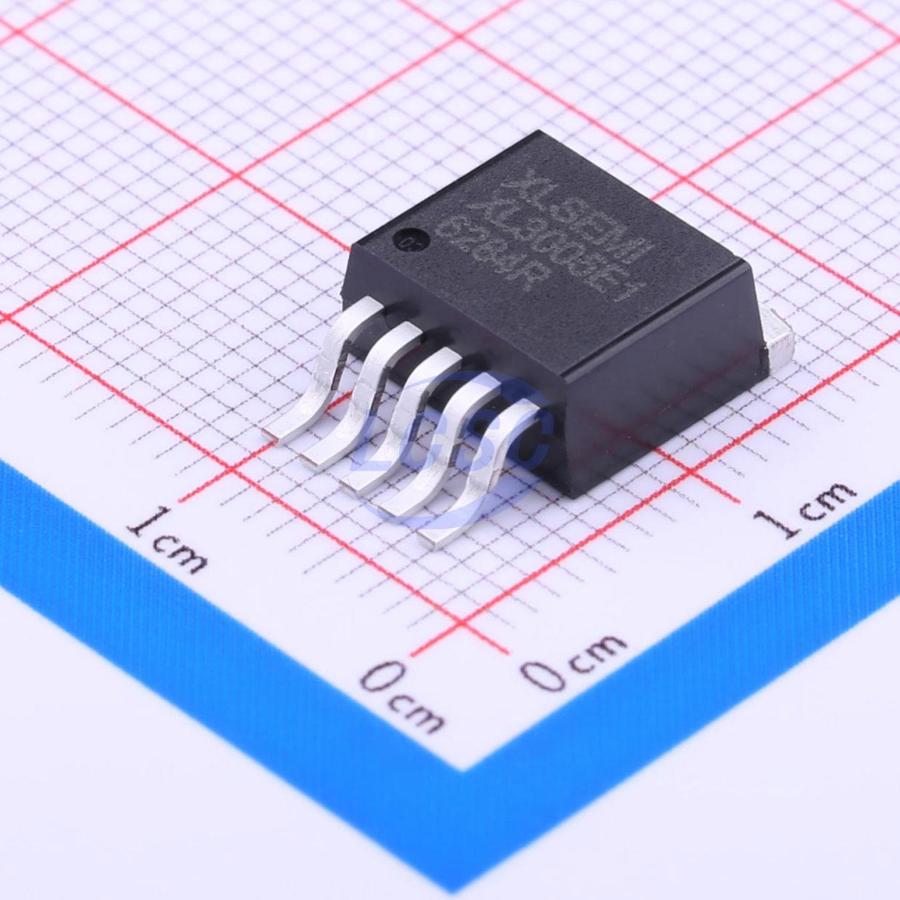

LED Driver IC 1 Output DC-DC Buck PWM Dimming 5A TO-263-5

TO-263-5RoHSActive

Switching current step-down LED constant current driver

Manufacturer: XLSEMI
Manufacturer part #: XL3005E1
Store part #: C73022
Package / case: TO-263-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,828 in stock

#C73022

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹115.99	₹115.99
10+	₹90.15	₹901.50
30+	₹77.12	₹2,313.60
100+	₹64.09	₹6,409.00
500+	₹56.48	₹28,240.00
800+	₹52.35	₹41,880.00

Quantity (min 1)

1 × ₹115.99

₹115.99

excl. GST

₹136.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 800 per reel

XL3005E1

₹115.99 for 1 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 220kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 5A
Voltage - Input(DC): 8V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.114 g

Overview

XL3005 is a step-down constant-current LED driver operating over a DC 8V to 36V input voltage range, featuring low ripple and an integrated power MOSFET. The built-in fixed-frequency oscillator and frequency compensation circuit simplify circuit design. The PWM control loop adjusts the duty cycle linearly from 0 to 100%. Built-in output overcurrent protection reduces the switching frequency from 220KHz to 60KHz under output short-circuit conditions. The internal compensation module minimizes the number of external components.
