XINLUDA

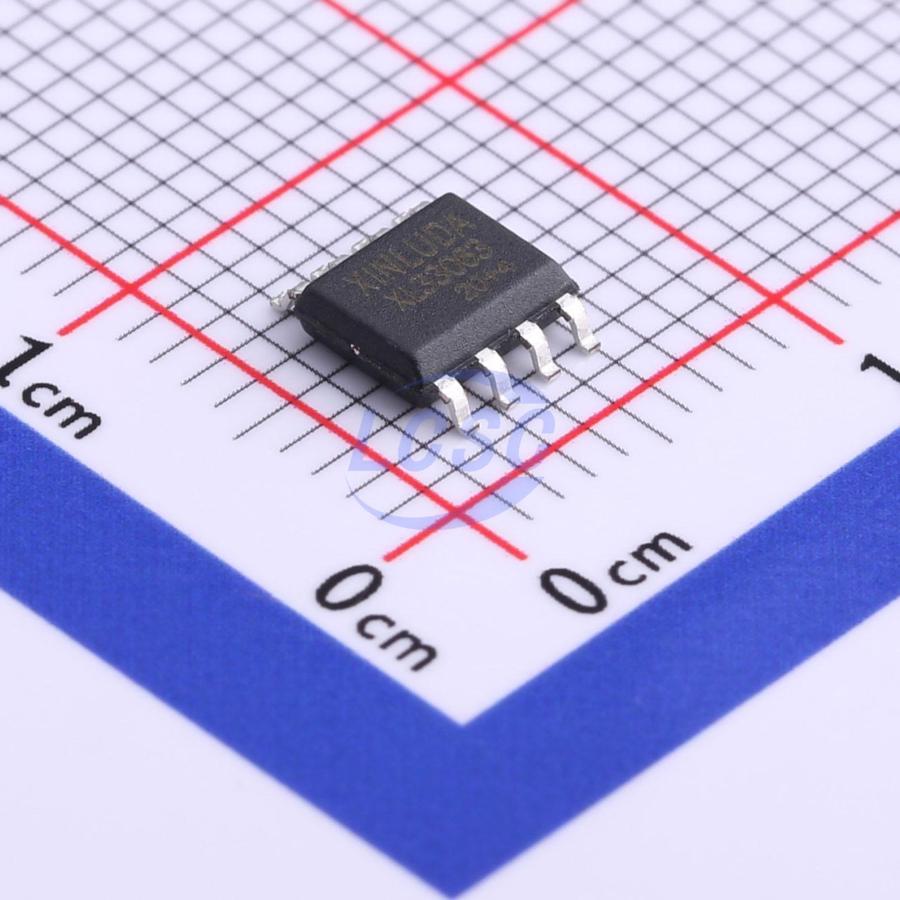

XL33063

33kHz Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators

SOIC-8RoHSActive

Step-Up/Down/Inverting Switching Regulators

Manufacturer: XINLUDA
Manufacturer part #: XL33063
Store part #: C521143
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,485 in stock

#C521143

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹20.29	₹101.45
50+	₹15.90	₹795.00
150+	₹13.71	₹2,056.50
500+	₹12.05	₹6,025.00
2,500+	₹10.16	₹25,400.00
5,000+	₹9.50	₹47,500.00

Quantity (min 5, multiples of 5)

5 × ₹20.29

₹101.45

excl. GST

₹119.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL33063

₹101.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 33kHz
Function: Step-down type;Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck;Boost;Inverting
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 1.5A

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.32 g

Overview

The 34063/33063 Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components.
