XL336-2.5

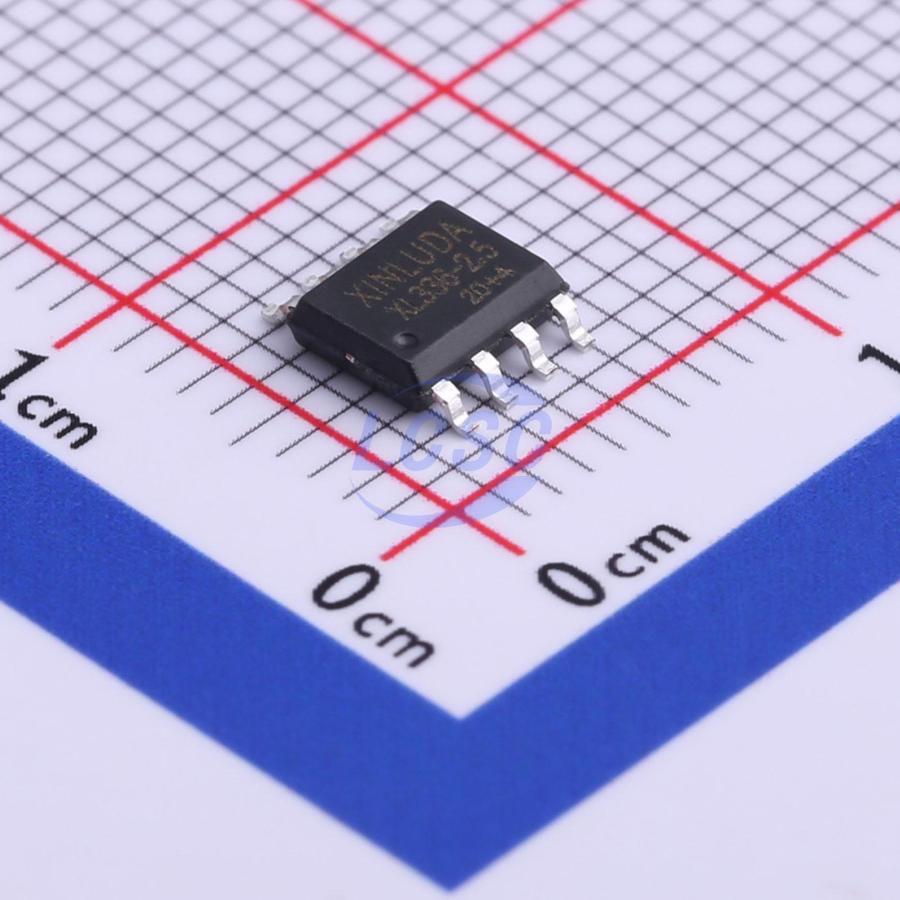

2.5V ±1% 10mA Adjustable SOP-8 Voltage Reference

SOP-8RoHSActive

2.5V precision shunt Zener diode

Manufacturer: XINLUDA
Manufacturer part #: XL336-2.5
Store part #: C521163
Package / case: SOP-8
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,450 in stock

#C521163

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.44	₹92.20
50+	₹14.70	₹735.00
150+	₹12.82	₹1,923.00
500+	₹11.42	₹5,710.00
2,500+	₹9.75	₹24,375.00
5,000+	₹9.19	₹45,950.00

Quantity (min 5, multiples of 5)

5 × ₹18.44

₹92.20

excl. GST

₹108.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL336-2.5

₹92.20 for 5 + GST

Specifications

Output Voltage: 2.5V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 400uA
Reference Type: Parallel
Output Current: 10mA
Operating Temperature: -25℃~+85℃
Features: Temperature compensation control
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.228 g

Overview

The XL236-2.5 / XL336-2.5 and XT336-2.5 integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the XL236-2.5 allows the reference voltage and temperature coefficient to be trimmed easily. The XL236-2.5 series is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the XL236- 2.5 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The XL236-2.5 is rated for operation over -55°C to +125°C while the XL336-2.5 is rated over a -25°C to +85°C temperature range. The XT336-2.5 is rated for operation over a 0°C to +70°C temperature range.
