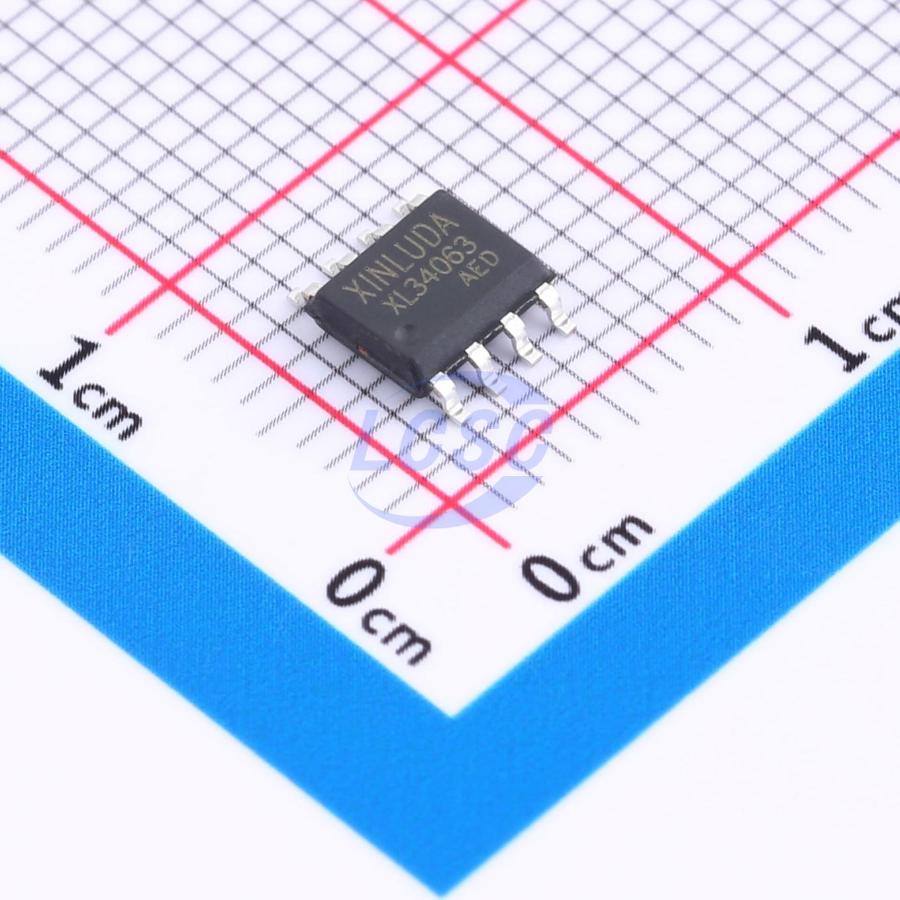

XINLUDA

XL34063

100kHz Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators

SOIC-8RoHSActive

Step-Up/Down/Inverting Switching Regulators

Manufacturer: XINLUDA
Manufacturer part #: XL34063
Store part #: C521144
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C521144

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.57	₹97.85
50+	₹15.29	₹764.50
150+	₹13.15	₹1,972.50
500+	₹11.55	₹5,775.00
2,500+	₹9.71	₹24,275.00
5,000+	₹9.06	₹45,300.00

Quantity (min 5, multiples of 5)

5 × ₹19.57

₹97.85

excl. GST

₹115.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL34063

₹97.85 for 5 + GST

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Frequency - Switching: 100kHz
Function: Boost;Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck;Boost;Inverting
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 1.5A

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.224 g

Overview

The 34063/33063 Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of external components.
