XLSEMIDatasheet (PDF)

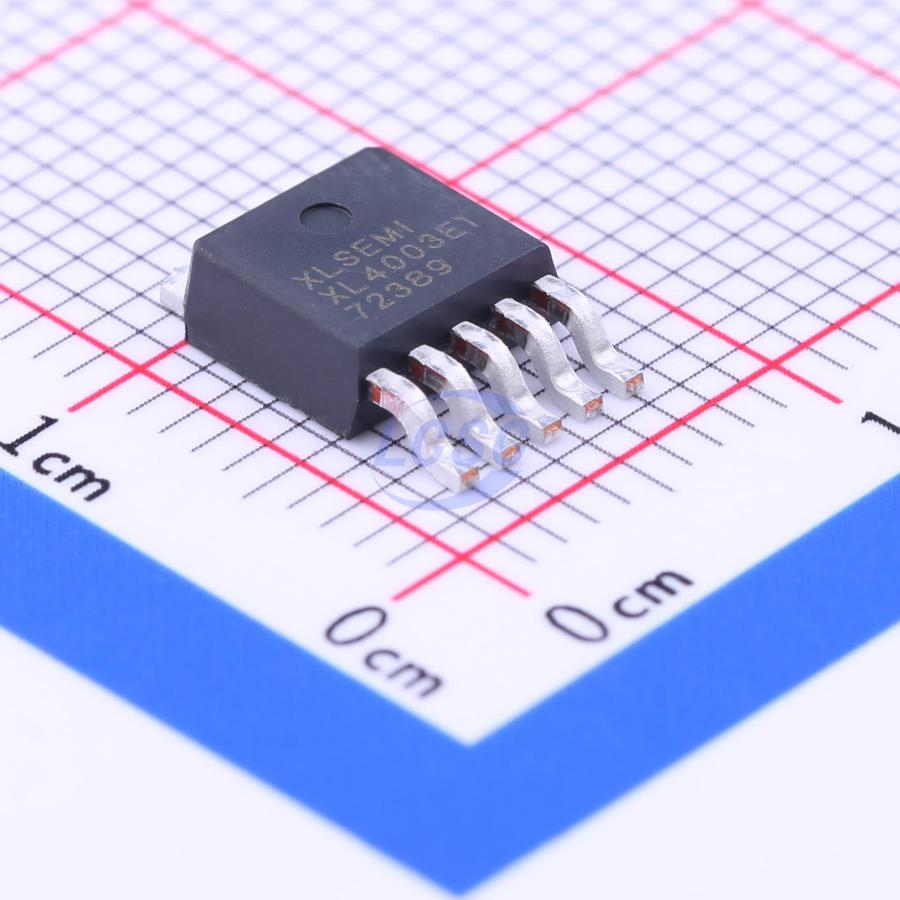

XL4003E1
300kHz Step-down type Adjustable 800mV~30V 4A TO-252-5 Voltage Regulators - DC DC Switching Regulators RoHS
TO-252-5ROHS CompliantActive
4A 300KHz 32V Buck DC to DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL4003E1
- Store part #
- C55888
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,129 in stock
#C55888
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.34 | ₹88.34 |
| 10+ | ₹69.25 | ₹692.50 |
| 30+ | ₹59.48 | ₹1,784.40 |
| 100+ | ₹49.93 | ₹4,993.00 |
| 500+ | ₹44.28 | ₹22,140.00 |
| 1,000+ | ₹41.24 | ₹41,240.00 |
1 × ₹88.34
₹88.34
excl. GST
₹104.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL4003E1
₹88.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 300kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~32V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~30V
- Output Current
- 4A
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.627 g
Overview
The XL4003 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 4A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 300KHz to 60KHz. An internal compensation block is built in to minimize external component count.
Applications
- LCD Monitor and LCD TV
- Digital Photo Frame
- Set-up Box
- ADSL Modem
- Telecom / Networking Equipment
Key features
- Wide 5V to 32V Input Voltage Range
- Output Adjustable from 0.8V to 30V
- Maximum Duty Cycle 100%
- Minimum Drop Out 0.6V
- Fixed 300KHz Switching Frequency
- 4A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency
- Excellent line and load regulation
- TTL shutdown capability
- EN pin with hysteresis function
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function
- Available in TO252-5L package
