XLSEMIDatasheet (PDF)

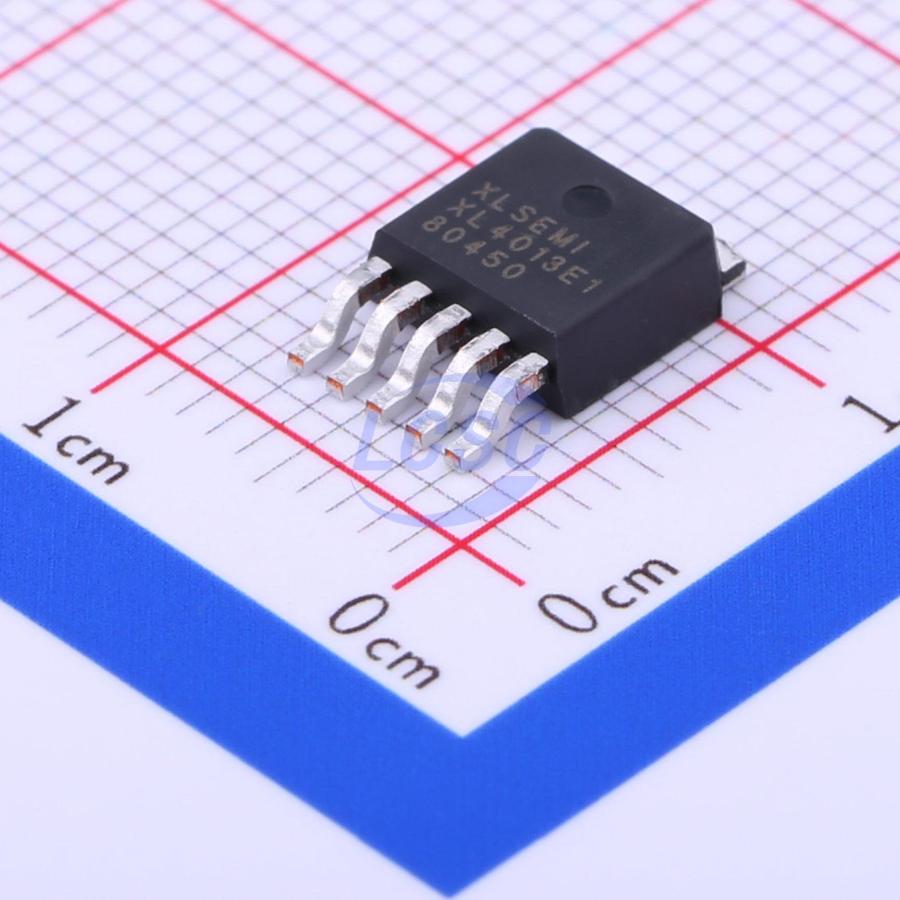

XL4013E1
180kHz Step-down type Adjustable 1.25V~32V 4A TO-252-5 Voltage Regulators - DC DC Switching Regulators RoHS
TO-252-5ROHS CompliantActive
4A 180KHz 36V Buck DC-DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL4013E1
- Store part #
- C73333
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,830 in stock
#C73333
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.48 | ₹87.48 |
| 10+ | ₹68.37 | ₹683.70 |
| 30+ | ₹58.82 | ₹1,764.60 |
| 100+ | ₹49.49 | ₹4,949.00 |
| 500+ | ₹43.84 | ₹21,920.00 |
| 1,000+ | ₹40.81 | ₹40,810.00 |
1 × ₹87.48
₹87.48
excl. GST
₹103.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL4013E1
₹87.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 180kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~32V
- Output Current
- 4A
- Quiescent Current
- 2.1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.627 g
Overview
The XL4013 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 4A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.
Applications
- LCD Monitor and LCD TV
- Portable instrument power supply
- Telecom / Networking Equipment
Key features
- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 32V
- Maximum Duty Cycle 100%
- Minimum Drop Out 0.3V
- Fixed 180KHz Switching Frequency
- 4A Constant Output Current Capability
- Internal Optimize Power MOSFET High efficiency
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function
- Available in TO252-5L package
