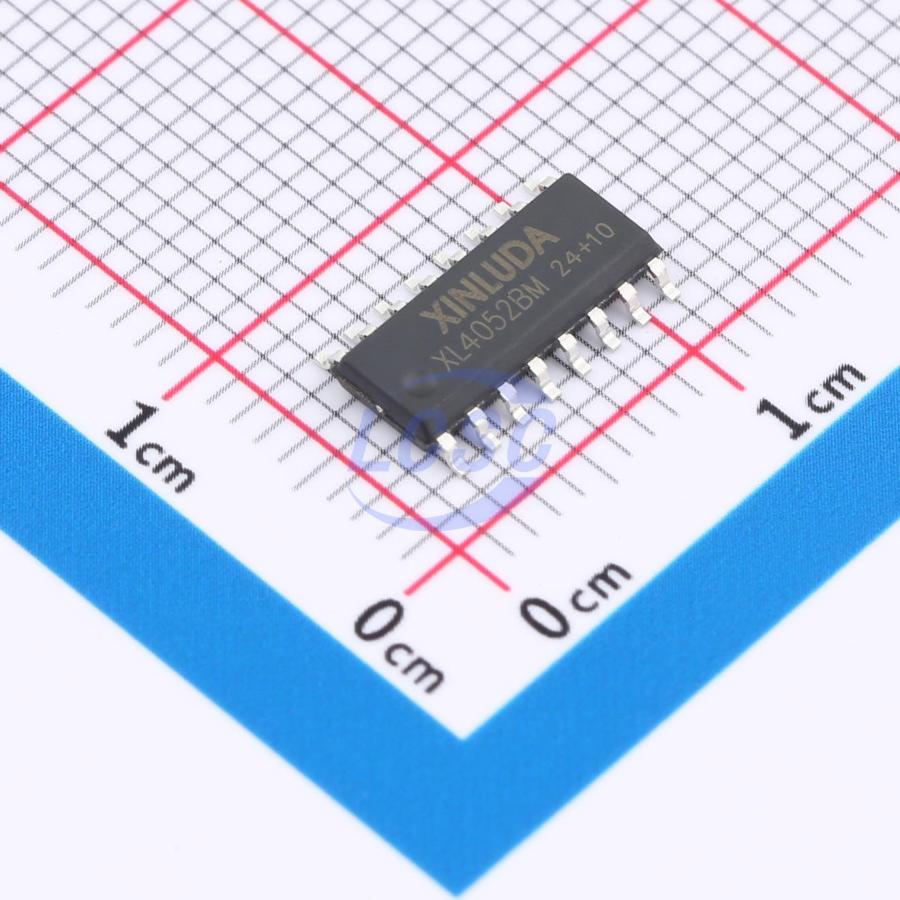

XL4052BM

The XD/XL4052 series analog switches are multi-modulated/selective analog switches controlled by digital signals with low on-resistance and low cut-off leakage current. The digital signal with amplitude of 4.5V ~ 18V can control the analog signal with peak-to-peak value of 18V. For example, if VDD = +5V, VSS = 0V, VEE = -13.5V, the digital signal from 0 to 5V can control the analog signal from -13.5 to 4.5V, and these switching circuits have very low static power consumption in the entire VDD-VSS and VDD-VEE power supply range. XD/XL4052 is A double four-choice analog switch, each group of four-choice analog switch has a, B two binary control input and INH input, the two binary signals can be set to any of the four analog channels as on-state. INH input "1" power level sets all channels of the two groups of four-option analog switches to the off state, and input "0" power level sets all channels of the two groups of four-option analog switches to the on-state.

Key features

• Very wide digital control and transmission analog signal voltage range: digital 4.5V ~ 18V, analog 18V
• Low on-resistance: 100Ω (VDD-VEE = 15V, signal greater than 15Vpp)
• Very low static voltage consumption
• High off resistance
• Digital address signal 4.5V ~ 18V logic level conversion to switch analog signal 18Vpp
• Built-in binary address decoder
