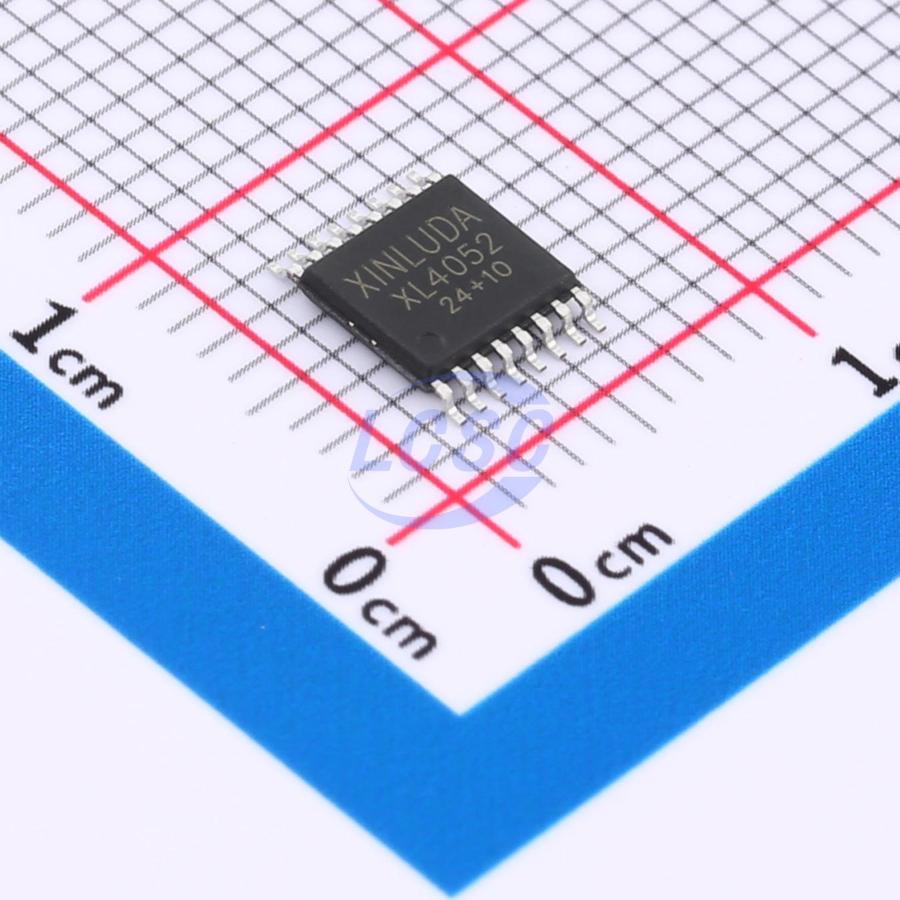

XINLUDA

XL4052BPWR

8 5V~15V 105Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS CompliantActive

A dual four-select switch

Manufacturer: XINLUDA
Manufacturer part #: XL4052BPWR
Store part #: C42379146
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,780 in stock

#C42379146

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹14.02	₹70.10
50+	₹10.91	₹545.50
150+	₹9.35	₹1,402.50
500+	₹8.18	₹4,090.00
2,500+	₹7.44	₹18,600.00
5,000+	₹6.97	₹34,850.00

Quantity (min 5, multiples of 5)

5 × ₹14.02

₹70.10

excl. GST

₹82.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL4052BPWR

₹70.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Level shifting;Control interface integration
Operating Temperature: -40℃~+85℃
Number of Channels: 8
Voltage - Supply: 5V~15V
Ron: 105Ω
Propagation Delay: 25ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.449 g

Overview

The XD/XL4052 series analog switches are multi-modulated/selective analog switches controlled by digital signals with low on-resistance and low cut-off leakage current. The digital signal with amplitude of 4.5V ~ 18V can control the analog signal with peak-to-peak value of 18V. For example, if VDD = +5V, VSS = 0V, VEE = -13.5V, the digital signal from 0 to 5V can control the analog signal from -13.5 to 4.5V, and these switching circuits have very low static power consumption in the entire VDD-VSS and VDD-VEE power supply range. XD/XL4052 is A double four-choice analog switch, each group of four-choice analog switch has a, B two binary control input and INH input, the two binary signals can be set to any of the four analog channels as on-state. INH input "1" power level sets all channels of the two groups of four-option analog switches to the off state, and input "0" power level sets all channels of the two groups of four-option analog switches to the on-state.

Key features

Very wide digital control and transmission analog signal voltage range: digital 4.5V ~ 18V, analog 18V
Low on-resistance: 100Ω (VDD-VEE = 15V, signal greater than 15Vpp)
Very low static voltage consumption
High off resistance
Digital address signal 4.5V ~ 18V logic level conversion to switch analog signal 18Vpp
Built-in binary address decoder
