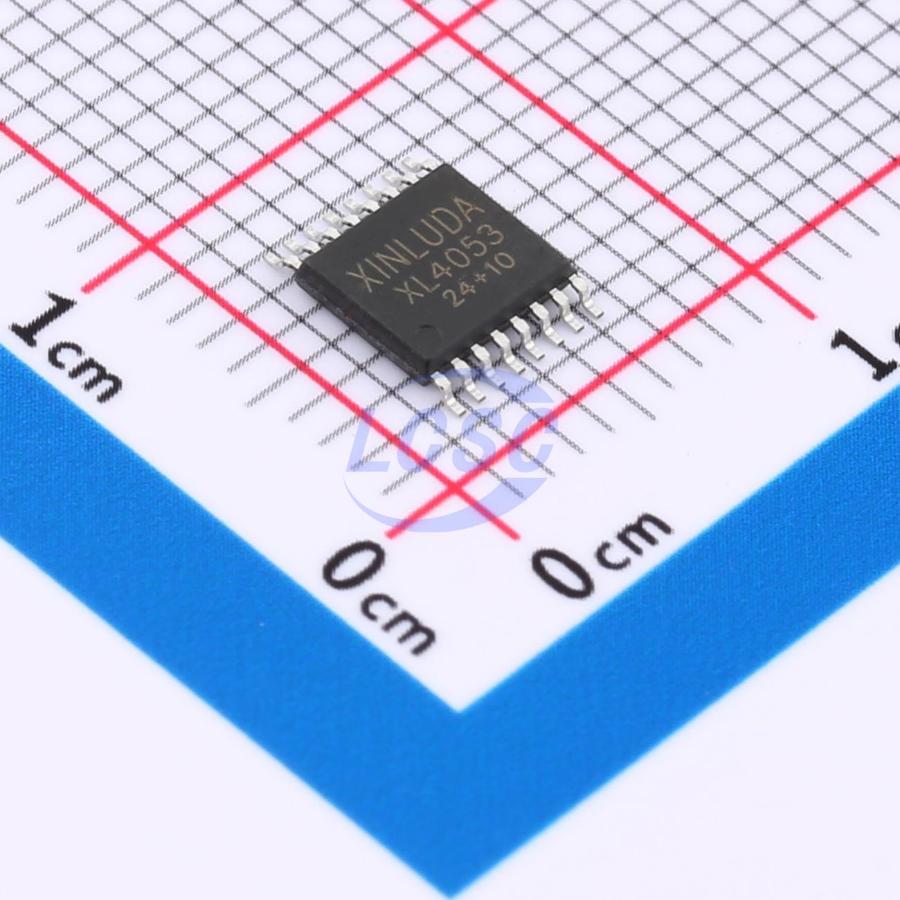

XL4053BPWR

The XD/XL4053 series analog switches are multi-modulated/selective analog switches controlled by digital signals with low on-resistance and low cut-off leakage current. The digital signal with amplitude of 4.5V ~ 18V can control the analog signal with peak-to-peak value of 18V. For example, if VDD = +5V, VSS = 0V, VEE = -13.5V, the digital signal from 0 to 5V can control the analog signal from -13.5 to 4.5V, and these switching circuits have very low static power consumption in the entire VDD-VSS and VDD-VEE power supply range. XD/XL4053 is a three-group 2-select 1 bidirectional analog switch, equivalent to three groups of single-pole double-throw switches. It has three independent sets of binary digital control inputs A, B, C and INH suppression inputs, and the binary digital control signal can set either of the two analog channels to the on-state. INH input "1" power to set all channels of the 3 groups of 2 optional 1 analog switches to the Off state, and input "0" power to set all channels of the 3 groups of 2 optional 1 analog switches to the on-state.

Key features

• Very wide digital control and transmission analog signal voltage range: digital 4.5V ~ 18V, analog 18V
• Low on-resistance: 80Ω (VDD-VEE ≤ 15V, signal greater than 15Vpp)
• Very low static voltage consumption
• High off resistance
• Digital address signal 4.5V ~ 18V logic level conversion to switch analog signal 18Vpp
• Built-in binary address decoder
