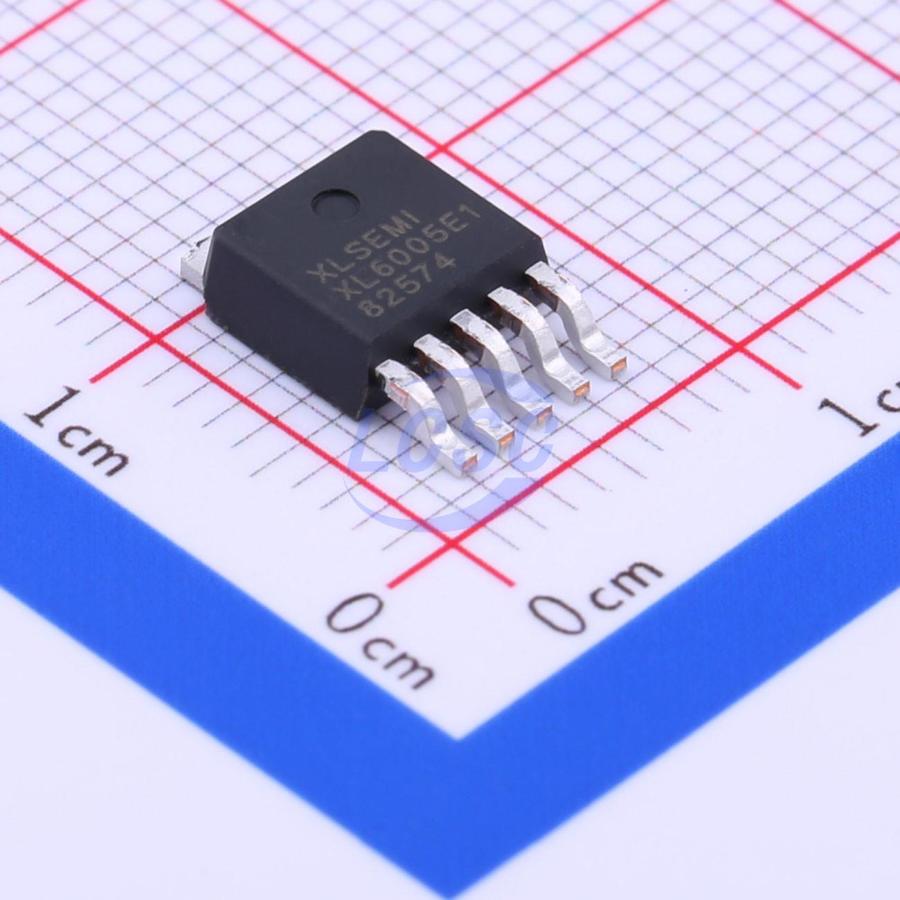

XL6005E1

The XL6005 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6005 could directly drive 11 Series 1W LED units at VIN >= 12V. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 95%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Applications

• LED Lighting
• Boost constant current driver
• Monitor LED Backlighting 7’ to 15° LCD Panels

Key features

• Wide 3.6V to 32V Input Voltage Range
• 0.22V FB adjustable LED drive current
• Directly drive 11 Series 1W LED at VIN >= 12V
• Fixed 180KHz Switching Frequency
• Max. 4A Switching Current Capability
• Up to 94% efficiency
• Excellent line and load regulation
• EN PIN TTL shutdown capability
• With PWM Dimming Function
• Internal Optimize Power MOSFET
• Built in Soft-Start Function
• Built in Frequency Compensation
• Built in Thermal Shutdown Function
• Built in Current Limit Function
• Available in TO252-5L package
