XLSEMIDatasheet (PDF)

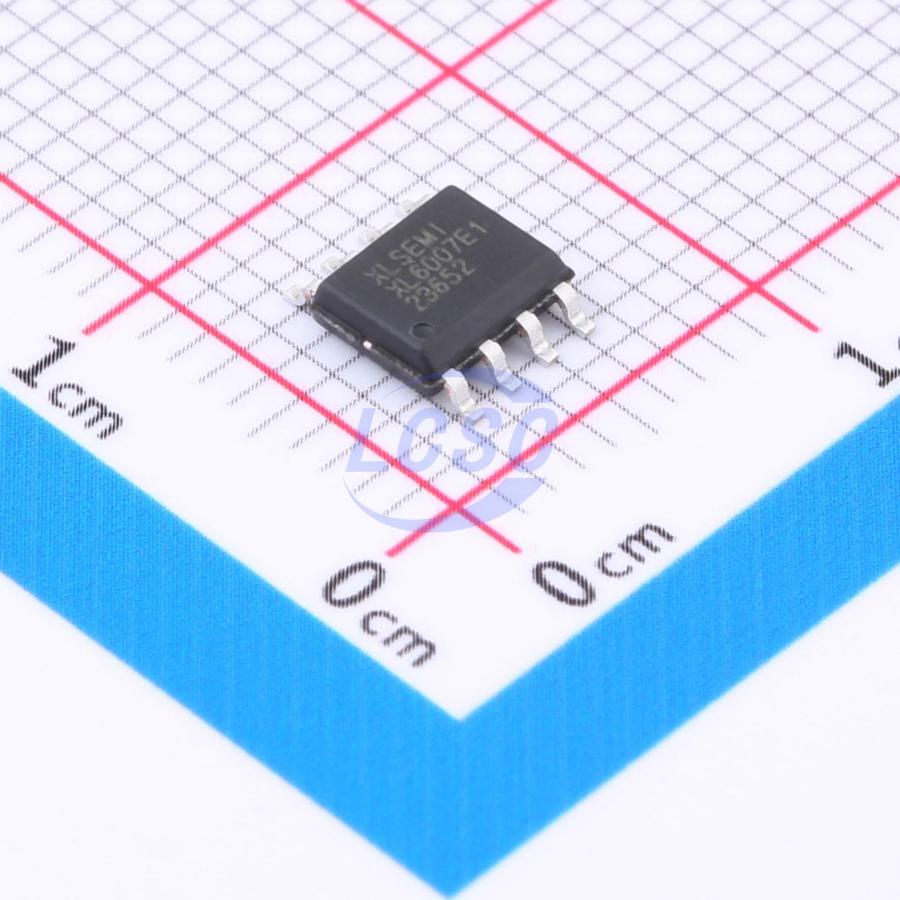

XL6007E1
400kHz Adjustable 2A SOIC-8-150mil Voltage Regulators - DC DC Switching Regulators
SOIC-8-150milRoHSActive
400KHz Switching Current Boost / Buck-Boost / Inverting DC/DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL6007E1
- Store part #
- C5240411
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,671 in stock
#C5240411
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.68 | ₹75.68 |
| 10+ | ₹57.46 | ₹574.60 |
| 30+ | ₹49.88 | ₹1,496.40 |
| 100+ | ₹40.11 | ₹4,011.00 |
| 500+ | ₹35.79 | ₹17,895.00 |
| 1,000+ | ₹33.18 | ₹33,180.00 |
1 × ₹75.68
₹75.68
excl. GST
₹89.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XL6007E1
₹75.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Boost;Buck-Boost
- Frequency - Switching
- 400kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;SEPIC;Inverting
- Operating Voltage
- 3.6V~24V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The XL6007 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6007 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6007 regulator is special design for portable electronic equipment.
Applications
- Automotive and Industrial Boost Buck-Boost / Inverting Converters
- Portable Electronic Equipment
Key features
- Wide 3.6V to 24V Input Voltage Range
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Current Mode Control Provides Excellent Transient Response
- 1.25V reference adjustable version
- Fixed 400KHz Switching Frequency
- Maximum 2A Switching Current
- SW PIN Built in Over Voltage Protection
- Excellent line and load regulation
- EN PIN TTL shutdown capability
- Internal Optimize Power MOSFET
- High efficiency up to 90%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function
- Available in SOP8L package
