XLSEMI

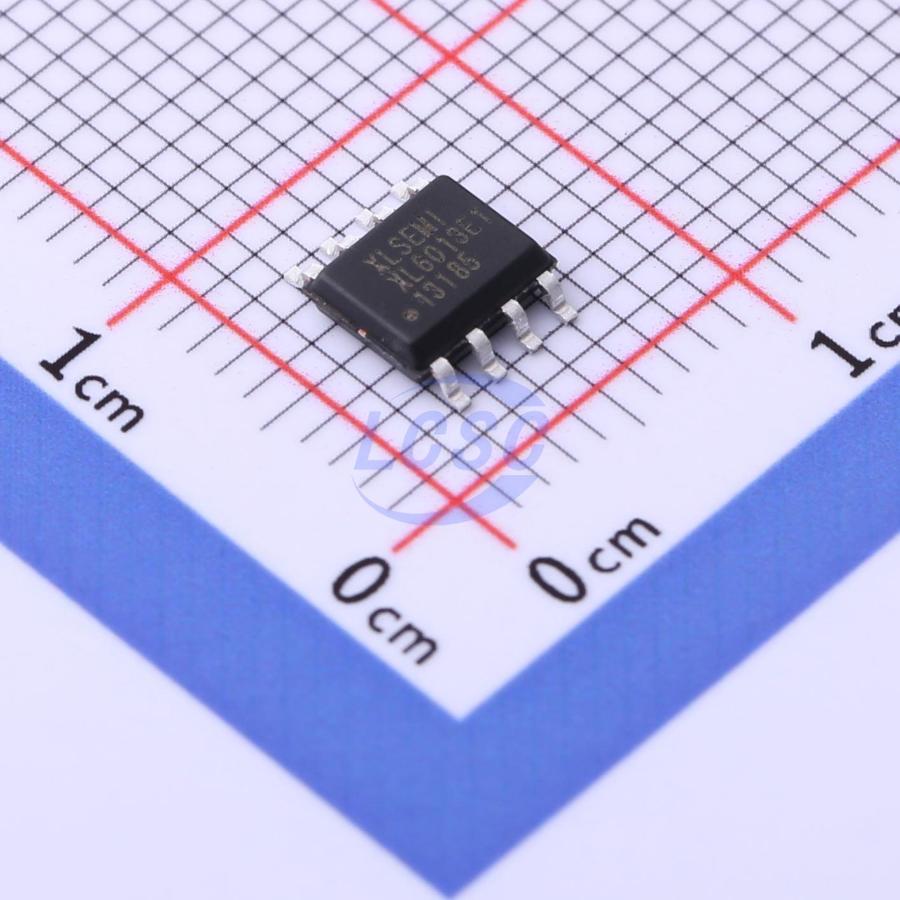

XL6013E1

320kHz~480kHz 1 Boost 5V~40V SOIC-8 LED Drivers ICs

SOIC-8RoHSActive

400KHz 60V 2A Switching Current Boost LED Constant Current Driver

Manufacturer: XLSEMI
Manufacturer part #: XL6013E1
Store part #: C2998681
Package / case: SOIC-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,015 in stock

#C2998681

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹54.86	₹274.30
50+	₹41.85	₹2,092.50
150+	₹36.21	₹5,431.50
500+	₹29.28	₹14,640.00
2,500+	₹26.02	₹65,050.00
4,000+	₹24.08	₹96,320.00

Quantity (min 5, multiples of 5)

5 × ₹54.86

₹274.30

excl. GST

₹323.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

XL6013E1

₹274.30 for 5 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP)
Frequency - Switching: 320kHz~480kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Topology: Boost
Voltage - Input(DC): 5V~40V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.187 g

Overview

The XL6013 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6013 could directly drive 5 - 10 Series 1W LED units at VIN > 12V. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.
