XLSEMIDatasheet (PDF)

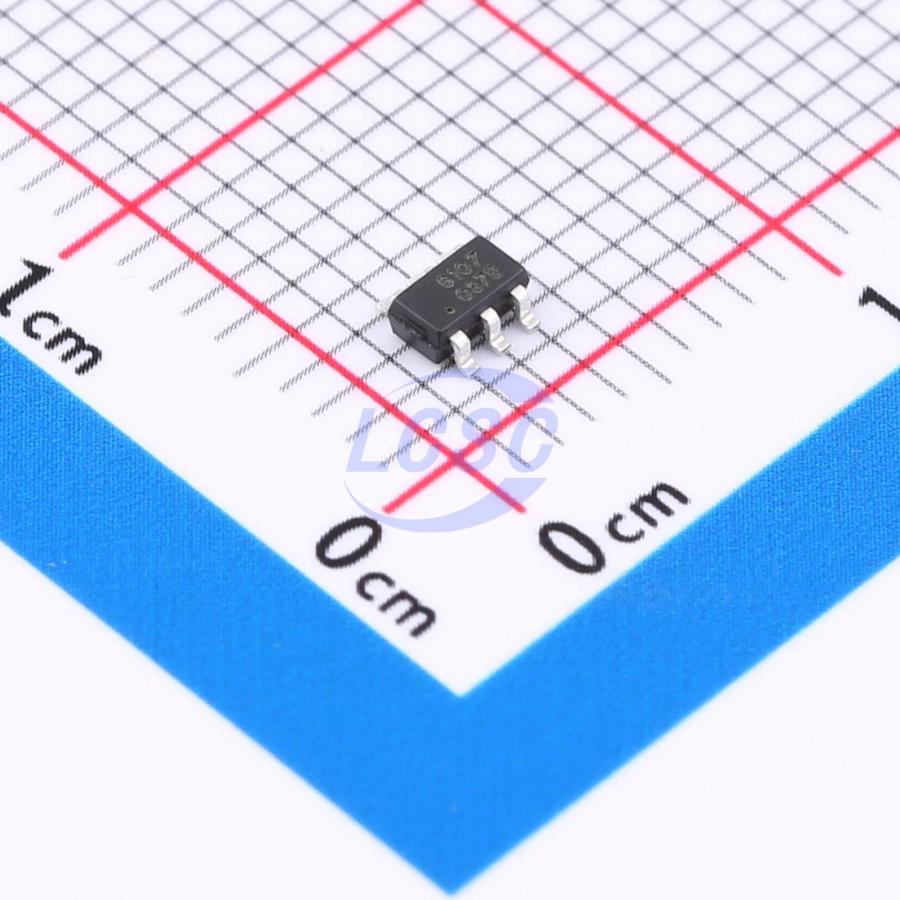

XL6107
Boost Switching Regulator IC Adjustable 3V~32V 1 Output SOT-23-6
SOT-23-6ROHS CompliantActive
500mA 1.2MHz 36V step-up DC-DC converter with built-in SBD
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL6107
- Store part #
- C41409393
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C41409393
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.46 | ₹82.30 |
| 50+ | ₹12.91 | ₹645.50 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹9.82 | ₹4,910.00 |
| 2,500+ | ₹8.75 | ₹21,875.00 |
| 5,000+ | ₹8.22 | ₹41,100.00 |
5 × ₹16.46
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XL6107
₹82.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~20V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 500mA
- Output Voltage
- 3V~32V
- Quiescent Current
- 2.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
XL6107 is a high-efficiency boost DC-DC converter with an integrated high-frequency power transistor and Schottky diode, supporting an input voltage range of 2.5V to 20V. The IC operates at a fixed 1.2MHz switching frequency with built-in frequency compensation, allowing the use of small external components to help reduce system cost and board space. The output voltage is set via external resistor dividers, and the low 410mV feedback voltage significantly reduces power dissipation in the external sensing resistors. The EN pin supports TTL-level on/off control, and the IC features built-in output overvoltage protection and thermal shutdown. This device is well-suited for applications requiring ultra-low quiescent current and a very compact footprint.
Applications
- Panel power supplies
- GPS receivers
- DSL modems
- Wearable portable electronics
Key features
- Input voltage range: 2.5V~20V
- Output voltage range: 3V~32V
- Shutdown current: 3uA
- Fixed switching frequency: 1.2MHz
- Maximum switch current: 500mA
- Integrated high-frequency power transistor
- Integrated Schottky diode
- Efficiency up to 87%
- Excellent line and load regulation
- EN pin for TTL enable/shutdown control
- Built-in output overvoltage protection
- Built-in thermal shutdown protection
- HBM ESD classification: Class 3A
- SOT23-6 package
