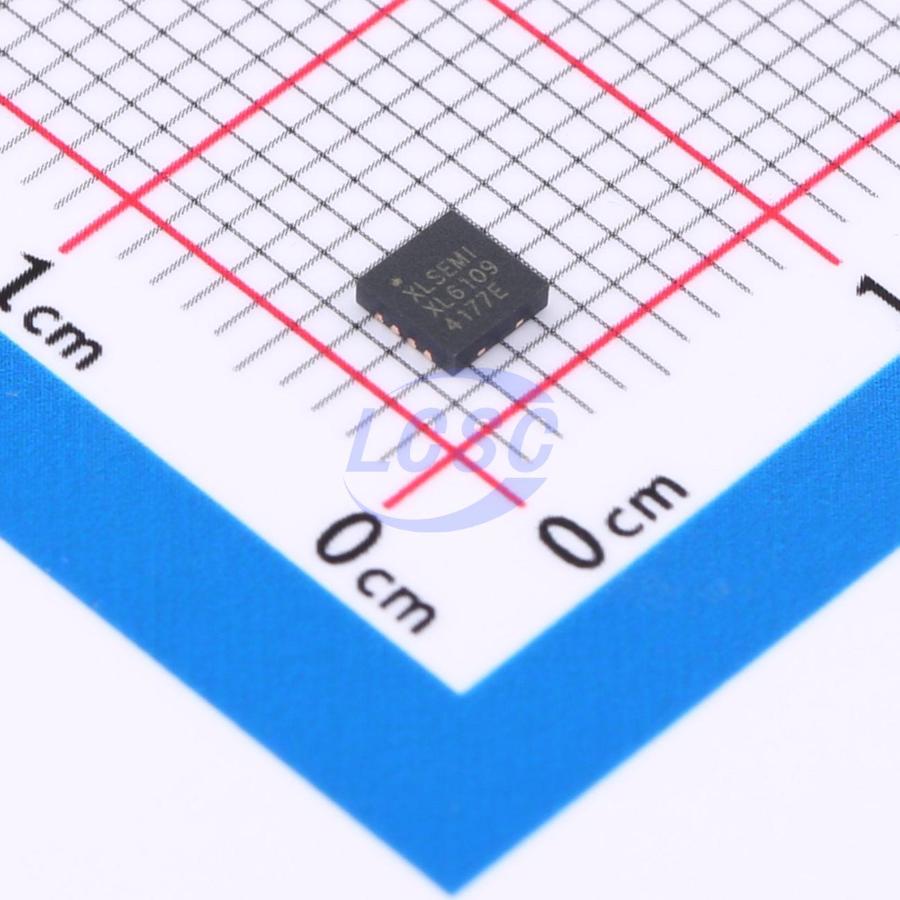

XL6109
Boost Switching Regulator IC Adjustable 3V~32V 1 Output 600mA PDFN-8L(3x3)
PDFN-8L(3x3)ROHS CompliantActive
600mA, 1.2MHz, 36V step-up DC-DC converter with built-in SBD
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL6109
- Store part #
- C48031577
- Package / case
- PDFN-8L(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,235 in stock
#C48031577
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.24 | ₹161.20 |
| 50+ | ₹25.56 | ₹1,278.00 |
| 150+ | ₹22.69 | ₹3,403.50 |
| 500+ | ₹19.12 | ₹9,560.00 |
| 2,500+ | ₹16.87 | ₹42,175.00 |
| 5,000+ | ₹15.92 | ₹79,600.00 |
5 × ₹32.24
₹161.20
excl. GST
₹190.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
XL6109
₹161.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Boost
- Number of Outputs
- 1
- Frequency - Switching
- 960kHz~1.44MHz
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;SEPIC
- Operating Voltage
- 2.5V~25V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 3V~32V
- Quiescent Current
- 2.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Overview
XL6109 is a high-efficiency boost DC-DC converter with an integrated high-frequency power transistor and Schottky diode, supporting an input voltage range of 2.5V to 25V. The switching frequency is 1.2MHz with a built-in frequency compensation circuit, allowing the use of cost-effective small external components to reduce overall power system cost and minimize PCB space. The output voltage is set via external voltage-divider resistors, and the low feedback voltage of 410mV significantly reduces power dissipation in the external sampling resistors. The EN pin supports TTL enable/disable control, with built-in output overvoltage protection and thermal shutdown protection. This device is suited for applications with stringent requirements on quiescent current and form factor.
Applications
- Panel power supplies
- GPS receivers
- DSL modems
- Wearable portable electronics
Key features
- Input voltage range: 2.5V~25V
- Output voltage range: 3V~32V
- Shutdown current: 3uA
- Fixed switching frequency: 1.2MHz
- Maximum switch current: 600mA
- Integrated high-frequency power transistor
- Integrated Schottky diode
- Efficiency up to 87%
- Excellent line and load regulation
- EN pin for TTL on/off control
- Supports boost or SEPIC topology
- Built-in output overvoltage protection
- Built-in thermal shutdown protection
- HBM ESD classification: Class 3A
- DFN3×3-8 package
