XLSEMIDatasheet (PDF)

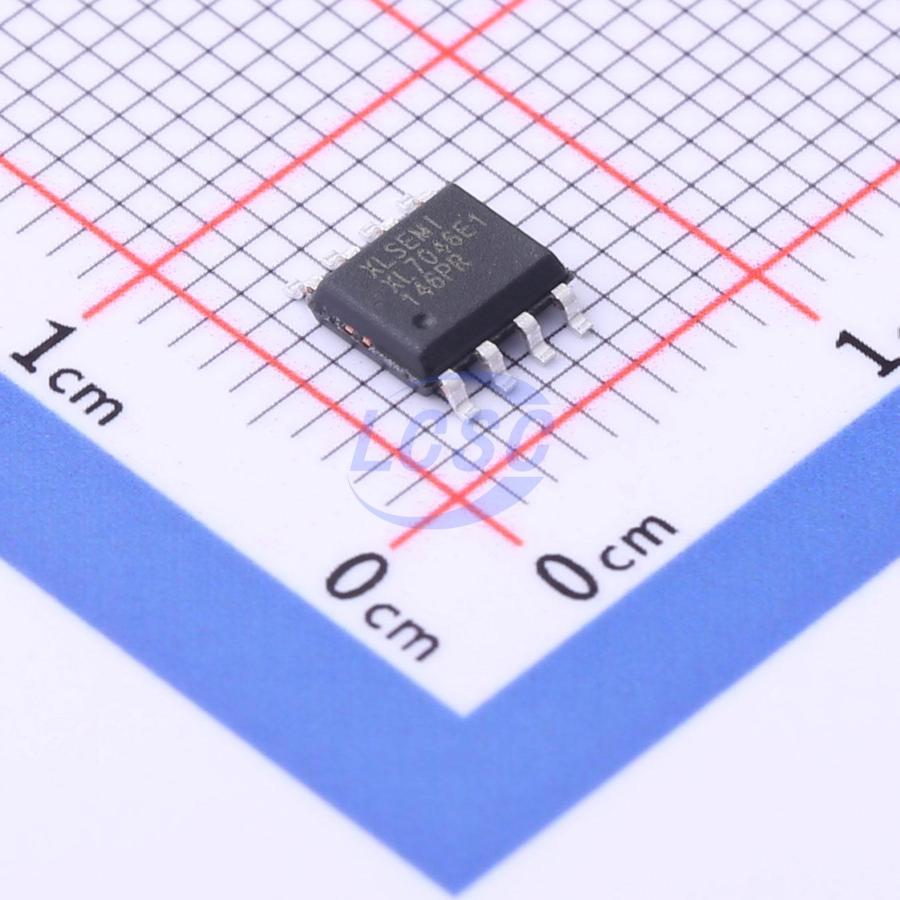

XL7046E1
100kHz Step-down type Adjustable 1.25V~20V 1A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
1.0A 100KHz 90V Buck DC/DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL7046E1
- Store part #
- C2843193
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,576 in stock
#C2843193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.47 | ₹88.47 |
| 10+ | ₹67.22 | ₹672.20 |
| 30+ | ₹58.33 | ₹1,749.90 |
| 100+ | ₹47.06 | ₹4,706.00 |
| 500+ | ₹41.85 | ₹20,925.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹88.47
₹88.47
excl. GST
₹104.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XL7046E1
₹88.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 100kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~80V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~20V
- Output Current
- 1A
- Quiescent Current
- 2.1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
The XL7046 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 1.0A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 85%.
Applications
- Ebike Controller Power Supply
- Telecom / Networking Equipment
Key features
- Operation Voltage from 8V to 80V
- Maximum Duty Cycle up to 85%
- Minimum Drop Out 2.0V
- Adjust VOUT from 1.25V to 20V
- Max. IOUT = 1.0A at VOUT = 5V
- Max. IOUT = 0.5A at VOUT = 15V
- Fixed 100KHz Switching Frequency
- Max. Output power less than 8W
- EN PIN TTL shutdown capability
- Internal Optimize HV Power MOSFET
- High efficiency up to 91%
- Excellent line and load regulation
- Built in current limit function
- Built in output short Protection Function
- SOP8-EP (Exposed PAD) package
