XLSEMIDatasheet (PDF)

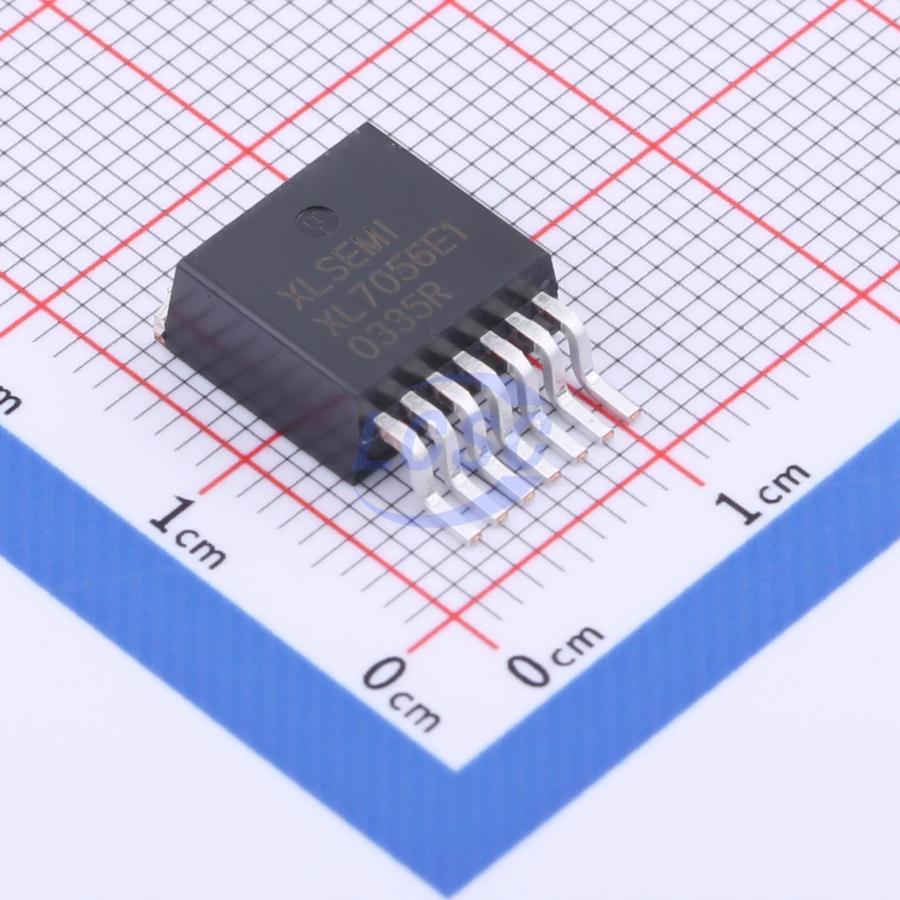

XL7056E1
Buck Switching Regulator IC Adjustable 1.25V~20V 1 Output 2.1A TO-263-7
TO-263-7ROHS CompliantActive
2.1A 100KHz 100V Buck DC-DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL7056E1
- Store part #
- C2798028
- Package / case
- TO-263-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,014 in stock
#C2798028
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.23 | ₹129.23 |
| 10+ | ₹100.39 | ₹1,003.90 |
| 30+ | ₹85.86 | ₹2,575.80 |
| 100+ | ₹71.56 | ₹7,156.00 |
| 500+ | ₹62.88 | ₹31,440.00 |
| 800+ | ₹58.33 | ₹46,664.00 |
1 × ₹129.23
₹129.23
excl. GST
₹152.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
XL7056E1
₹129.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 100kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~80V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~20V
- Output Current
- 2.1A
- Quiescent Current
- 2.1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.33 g
Overview
A high-efficiency, high-voltage step-down DC-DC converter with a fixed 100KHz switching frequency, capable of delivering up to 2.1A output current, featuring low ripple and excellent line and load regulation. The integrated fixed-frequency oscillator and frequency compensation circuitry simplify circuit design. The PWM control loop regulates the duty cycle with linear variation from 0 to 85%.
Applications
- EV controller power supply communication
Key features
- 8V to 80V operating voltage range
- 85% maximum duty cycle
- 2.0V minimum dropout voltage
- Adjustable output voltage from 1.25V to 20V
- 2.1A maximum output current at 5V output
- 1.2A maximum output current at 15V output
- Fixed 100KHz switching frequency
- Maximum output power less than 20W
- Integrated high-voltage power MOSFET
- Up to 93% efficiency
- Excellent line and load regulation
- Built-in current limiting
- Built-in output short-circuit protection
- TO263-7L package
