VISHAYDatasheet (PDF)

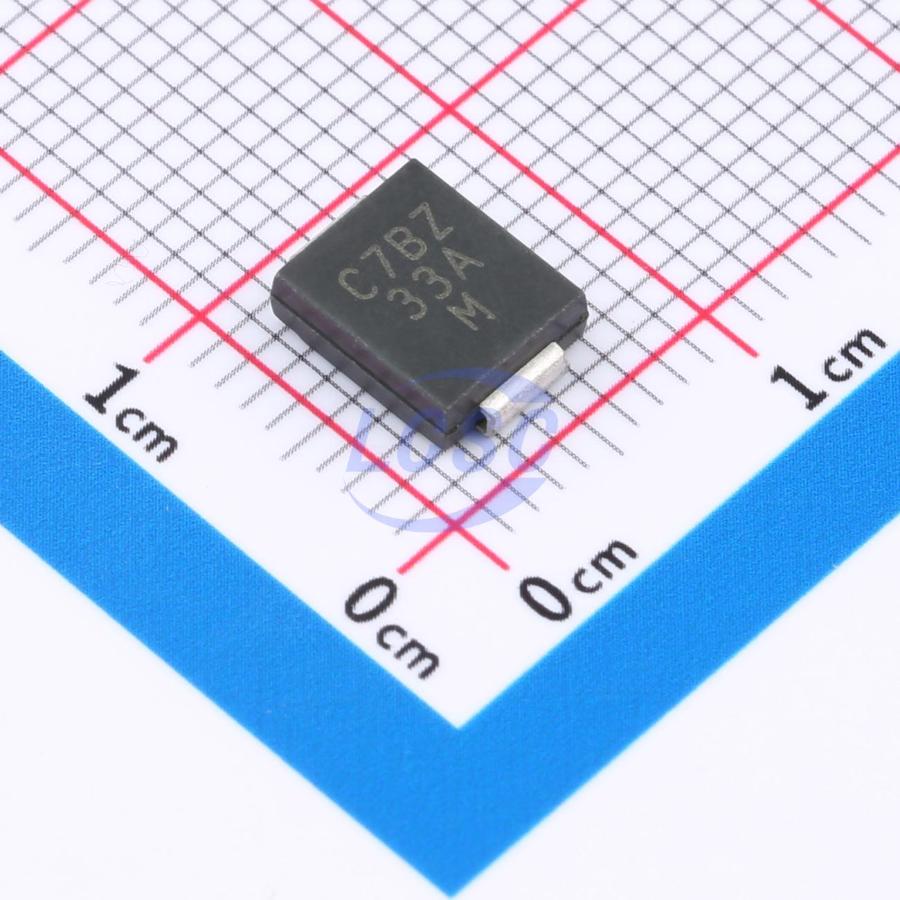

XMC7K24CAHM3/I
24VC Clamp 180A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 24VWM 24VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- XMC7K24CAHM3/I
- Store part #
- C3706026
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C3706026
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.95 | ₹150.95 |
| 10+ | ₹147.50 | ₹1,475.00 |
| 30+ | ₹145.34 | ₹4,360.20 |
| 100+ | ₹142.98 | ₹14,298.00 |
1 × ₹150.95
₹150.95
excl. GST
₹178.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
XMC7K24CAHM3/I
₹150.95 for 1 + GST
Specifications
- Clamping Voltage
- 24V
- Peak Pulse Current (Ipp)
- 180A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 7kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switch and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication
Key features
- XClampRTM extremely low clamping voltage IPPM = 180 A with a 10/1000μs waveform TJ = 175℃ capability suitable for high reliability and automotive requirement
- Bidirectional
- Low leakage current
- AEC - Q101 qualified - Automotive ordering code: base P/NHM3
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260℃
- UL recognition for safety 497B with file number E136766
