VBsemi ElecDatasheet (PDF)

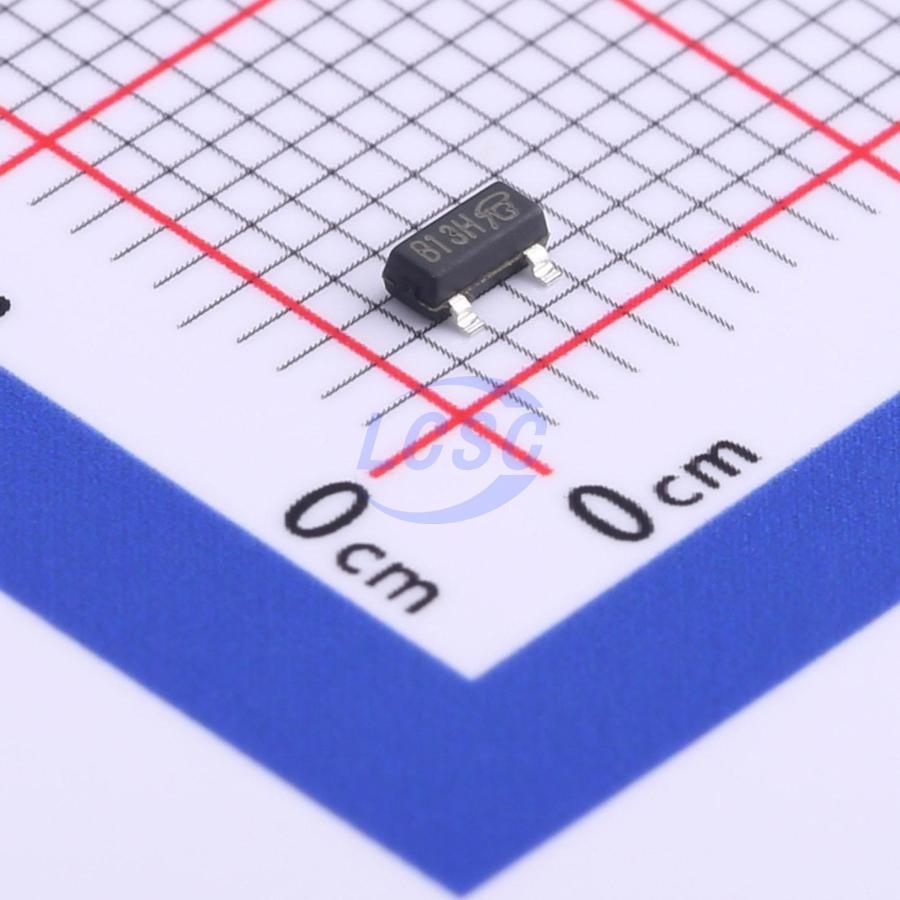

XP151A11B0MR-VB
N-Channel 30V 6.5A 1.1W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 30V 6.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- XP151A11B0MR-VB
- Store part #
- C710114
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C710114
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.65 | ₹68.25 |
| 50+ | ₹10.89 | ₹544.50 |
| 150+ | ₹9.50 | ₹1,425.00 |
| 500+ | ₹8.47 | ₹4,235.00 |
| 3,000+ | ₹7.63 | ₹22,890.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹13.65
₹68.25
excl. GST
₹80.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XP151A11B0MR-VB
₹68.25 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 30mΩ@10V;33mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AM2308NE-T1-PF-VB#C4355050VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹14.91 · 50 in stock | View |
 | SSC8034GS6-VB#C4355113VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹14.91 · 20 in stock | View |
 | AM2340NE-T1-PF-VB#C5441213VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹14.65 · 20 in stock | View |
 | SSM3K335R-VB#C5456607VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹13.10 · 50 in stock | View |
 | SI2318DS-T1-GE3-VB#C558253VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 470 | ₹14.10 · 470 in stock | View |
