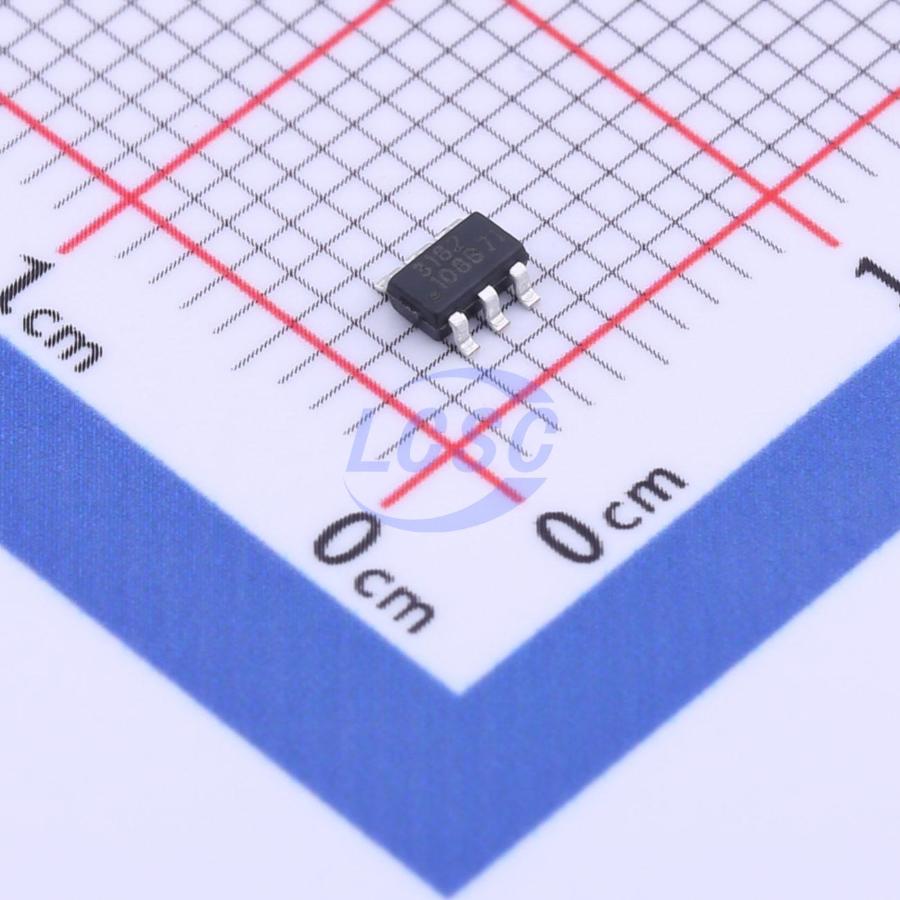

XP3182B
Step-down type 600kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V, 2A synchronous step-down converter
- Manufacturer
- FM
- Manufacturer part #
- XP3182B
- Store part #
- C2802261
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,171 in stock
#C2802261
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.70 | ₹12.70 |
| 10+ | ₹10.19 | ₹101.90 |
| 30+ | ₹8.94 | ₹268.20 |
| 100+ | ₹8.00 | ₹800.00 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 1,000+ | ₹6.88 | ₹6,880.00 |
1 × ₹12.70
₹12.70
excl. GST
₹14.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XP3182B
₹12.70 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Features
- Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
A high frequency, synchronous buck converter with internal power MOSFET. Supports wide input voltage range: 4.5V to 18V and provides 2.0A continuous load current capability, and provide high efficiency without use of external Schottky diode. Low output voltage ripple and small external inductor and capacitor size are achieved with 600KHz switching frequency. Has a variety of protection functions: Input over voltage protection, Input UVLO, Output over current protection, Output short protection and thermal shutdown. Available in a 6-pin SOT23-6 package, which provides a compact solution with minimal external components.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook Computer
- Wireless and DSL Modems
Key features
- Synchronous Buck Converter
- Internal Power MOSFET
- Wide 4.5V to 18V Input Voltage Range
- Output Current: 2A
- 600KHZ frequency Operation
- 0.8V Reference
- Soft Start
- Output Short With Hiccup Mode - Multiple Protection
- Input Over Voltage protection
- Input Under Voltage protection
- Output Over Voltage protection
- Over Current protection With Hiccup
- Over Temperature Protection
