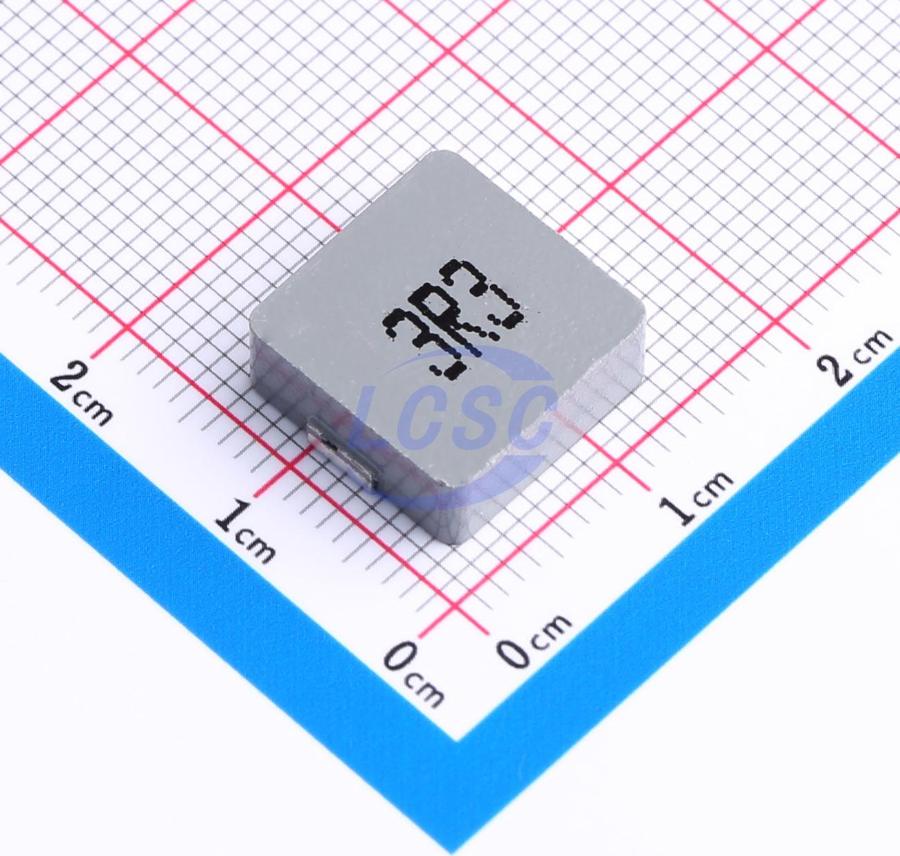

XR1250-3R3M

14A 3.3uH ±20% 22A 7mΩ Molded inductor SMD,13.5x12.6mm Fixed Inductors

SMD,13.5x12.6mmRoHSActive

FIXED IND 3.3uH 14A 7mΩ SMD,13.5x12.6mm

Manufacturer: XR
Manufacturer part #: XR1250-3R3M
Store part #: C5339462
Package / case: SMD,13.5x12.6mm
Category: Fixed Inductors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

248 in stock

#C5339462

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹49.44	₹49.44
10+	₹38.72	₹387.20
30+	₹34.20	₹1,026.00
100+	₹28.63	₹2,863.00
500+	₹26.16	₹13,080.00
1,000+	₹24.52	₹24,520.00

Quantity (min 1)

1 × ₹49.44

₹49.44

excl. GST

₹58.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

XR1250-3R3M

₹49.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 14A
Inductance: 3.3uH
Tolerance: ±20%
Current - Saturation(Isat): 22A
DC Resistance(DCR): 7mΩ
Type: Molded inductor

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 5.49 g

Overview

Applications

Notebooks and PCs
Switches and servers
Base stations
DC/DC converters
Battery-powered devices
SSD modules

Key features

High rated current
Frequency up to 3 MHz
Maximum operating temperature 125°C
Low core loss
Extremely low audible noise due to molded construction
Halogen-free and RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	XR1240-3R3M#C5339452XR · SMD,13.5x12.8mm	XR	SMD,13.5x12.8mm	124	₹76.18 · 124 in stock	View
	XRFWHP1040G-3R3M#C51484122XR · SMD,10.2x10mm	XR	SMD,10.2x10mm	500	₹163.95 · 500 in stock	View
