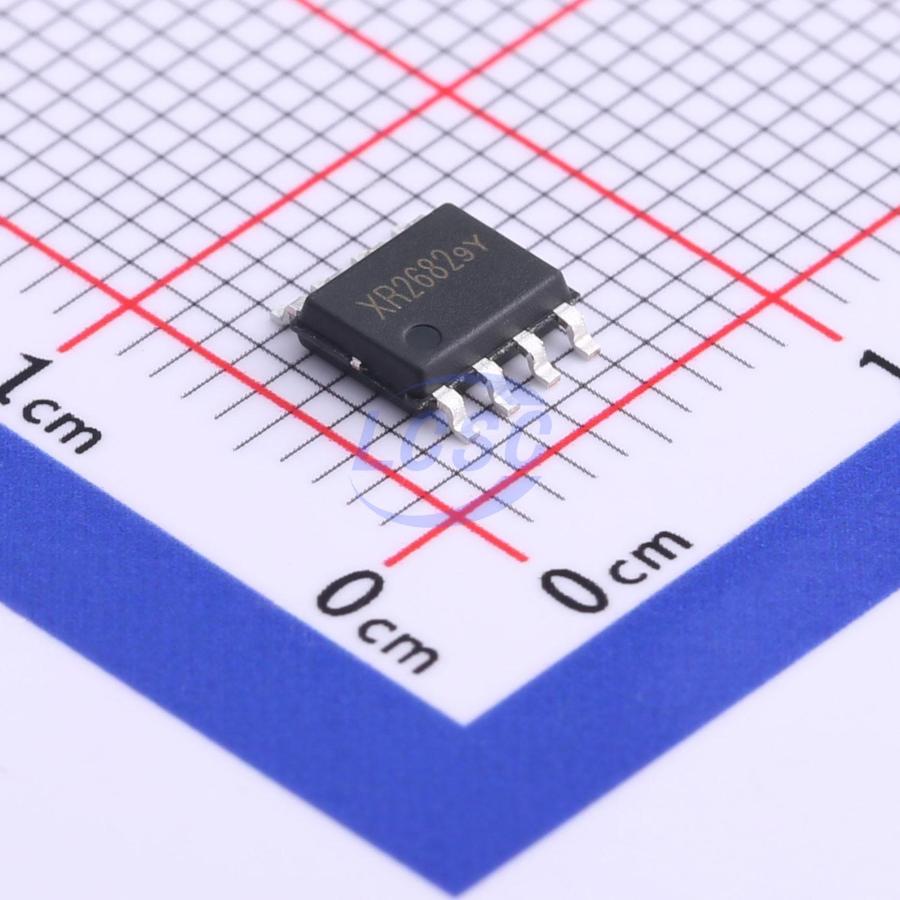

XySemi

XR2682

600kHz Boost Adjustable 6A ESOP-8 Voltage Regulators - DC DC Switching Regulators

ESOP-8RoHSActive

3.3V~5V Input 12W Output Step-up DC/DC Converter

Manufacturer: XySemi
Manufacturer part #: XR2682
Store part #: C712496
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,497 in stock

#C712496

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹61.48	₹61.48
10+	₹48.45	₹484.50
30+	₹42.80	₹1,284.00
100+	₹35.85	₹3,585.00
500+	₹32.59	₹16,295.00
1,000+	₹30.63	₹30,630.00
2,000+	₹30.42	₹60,840.00
4,000+	₹29.98	₹1,19,920.00

Quantity (min 1)

1 × ₹61.48

₹61.48

excl. GST

₹72.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

XR2682

₹61.48 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 600kHz
Number of Outputs: 1
Function: Boost
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 6A
Quiescent Current: 100uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.167 g

Overview

The XR2682 is a high frequency, high efficiency DC to DC converter with an integrated 6A, 40mΩ power switch capable of providing an output voltage up to 24V. The fixed 600KHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, Comp,. only need few components outside. It can output 6V 2A、9V 1.3A for single battery input. If Vba = 3.6V, it can output 6V 2.5A、9V 1.5A at good heat dissipation condition.
