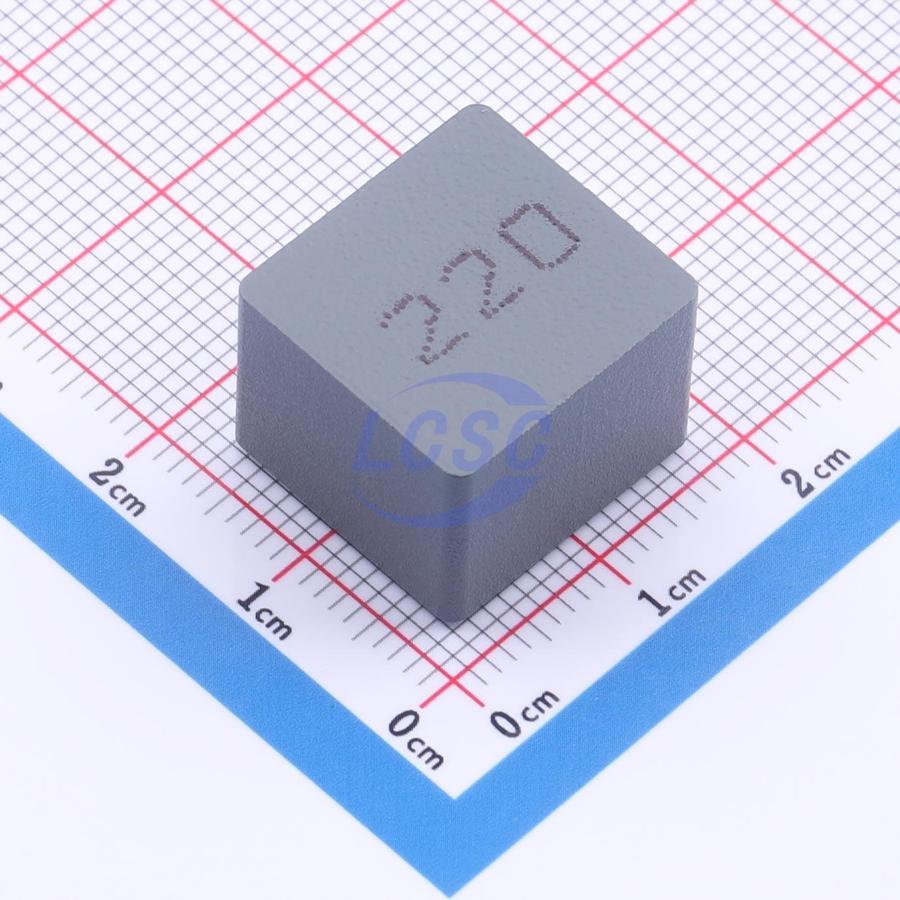

XRFWHP1513A-220M

19A 22uH ±20% 14.5mΩ 24A SMD,16.6x15.6mm Fixed Inductors

SMD,16.6x15.6mmRoHSActive

Manufacturer: XR
Manufacturer part #: XRFWHP1513A-220M
Store part #: C53436097
Package / case: SMD,16.6x15.6mm
Category: Fixed Inductors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

110 in stock

#C53436097

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹463.90	₹463.90
10+	₹398.71	₹3,987.10
30+	₹360.04	₹10,801.20
100+	₹320.71	₹32,071.00
500+	₹302.68	₹1,51,340.00
1,000+	₹294.65	₹2,94,650.00

Quantity (min 1)

1 × ₹463.90

₹463.90

excl. GST

₹547.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per reel

XRFWHP1513A-220M

₹463.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 19A
Inductance: 22uH
Tolerance: ±20%
DC Resistance(DCR): 14.5mΩ
Current - Saturation(Isat): 24A

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 100 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 21.72 g

Overview

XRFWHP1513A 22uH ±20% 24A

Key features

Operating temperature range: -40℃ to 125℃ (including self-heating)
Saturation current (Isat) causes approximately 30% drop in L0 (internal control standard: 40% max)
RMS current (Irms) at 40℃ rise from 25℃ ambient temperature
