NATLINEARDatasheet (PDF)

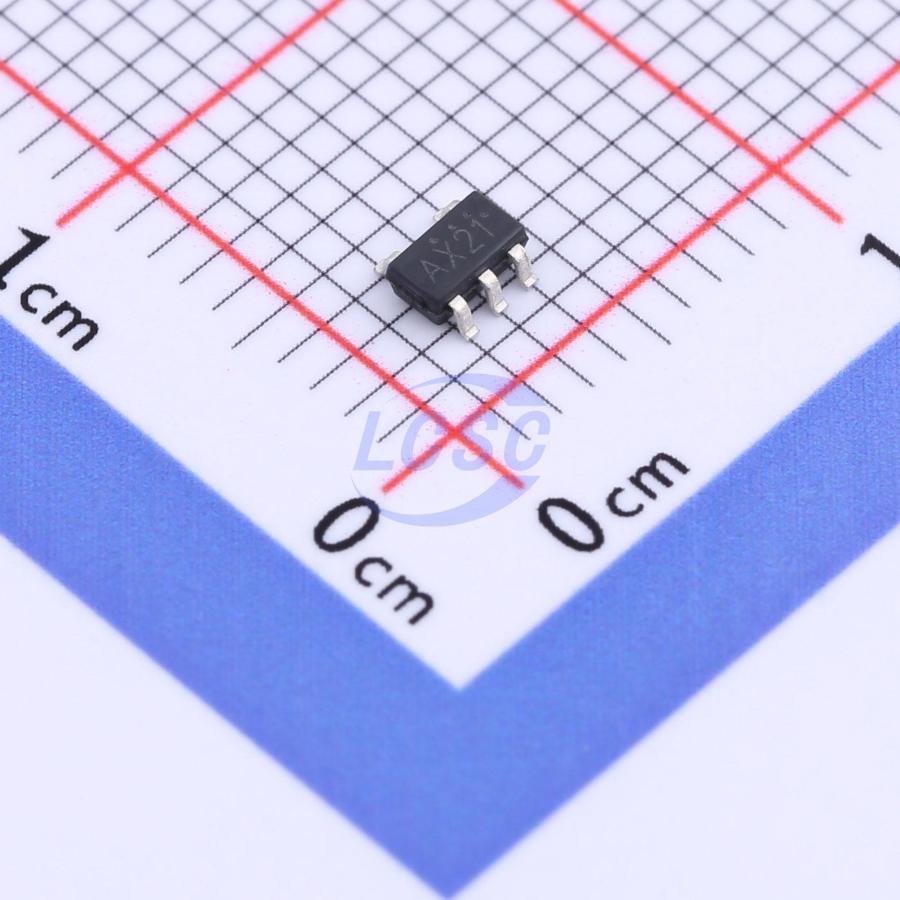

XT1861B332SR-G
Boost Switching Regulator IC 3.3V 1 Output SOT-23-5L
SOT-23-5LROHS CompliantActive
Synchronous step-up DC-DC converter
- Manufacturer
- NATLINEAR
- Manufacturer part #
- XT1861B332SR-G
- Store part #
- C3007998
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C3007998
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.31 | ₹103.10 |
| 100+ | ₹8.24 | ₹824.00 |
| 300+ | ₹7.22 | ₹2,166.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.62 | ₹33,720.00 |
| 9,000+ | ₹5.32 | ₹47,880.00 |
10 × ₹10.31
₹103.10
excl. GST
₹121.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT1861B332SR-G
₹103.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 300kHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~6.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The XT1861 series is a low-power, high-efficiency, low-ripple, high-frequency PFM-controlled boost DC-DC converter. The XT1861 series requires only 3 external components to support low-voltage battery input.
Applications
- Electronic devices powered by 1~3 dry cell batteries
- Digital cameras, electronic dictionaries
- LED flashlights, LED lamps
- Blood pressure monitors, MP3 players, remote-controlled toys
- Wireless headphones, wireless mouse/keyboard, medical devices
- Anti-loss trackers, car alarms, chargers, VCR, PDA and other handheld electronic devices
Key features
- Peak efficiency: 94%
- Maximum operating frequency: 300KHz
- Low quiescent current: 15μA
- Output voltage: 1.8V ~ 5.0V (step 0.1V)
- Output accuracy: ±2.5%
- Input voltage: 0.9V ~ 6.5V
- Low ripple, low noise
- Compact package
