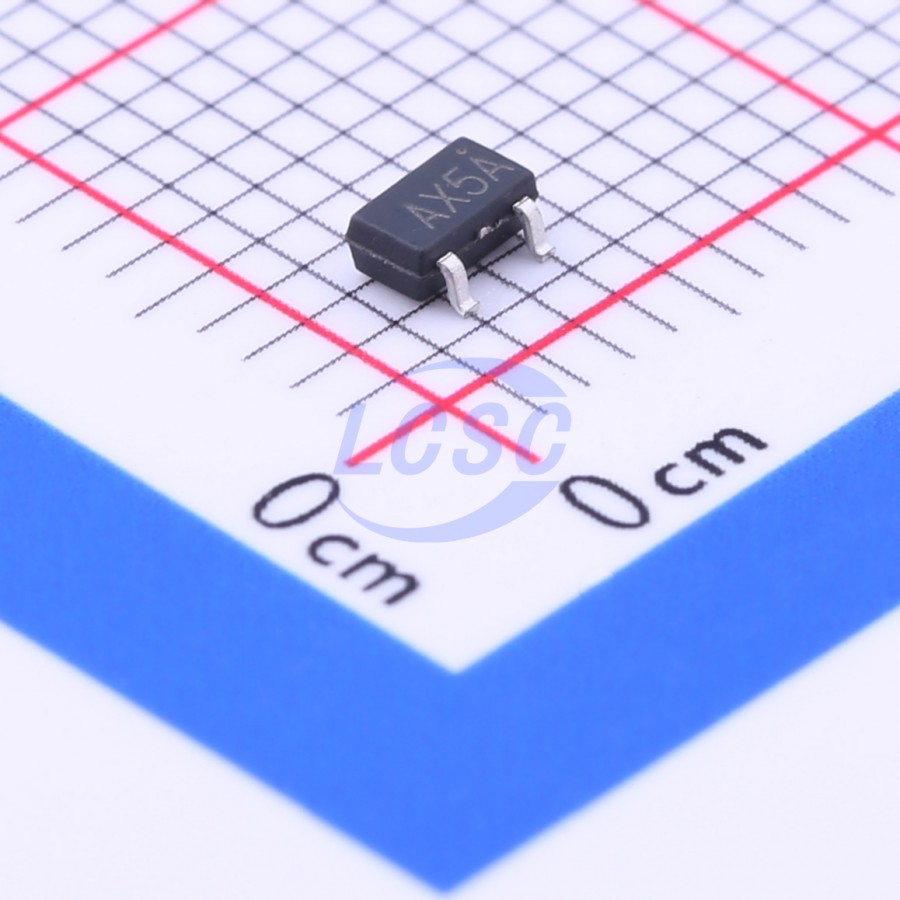

XT1861B362MR-G
300kHz Boost Fixed 3.6V SOT-23 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23ROHS CompliantActive
Synchronous DC-DC Boost Converter
- Manufacturer
- NATLINEAR
- Manufacturer part #
- XT1861B362MR-G
- Store part #
- C236397
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C236397
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.66 | ₹76.60 |
| 100+ | ₹6.02 | ₹602.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 3,000+ | ₹4.58 | ₹13,740.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.66
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT1861B362MR-G
₹76.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 300kHz
- Function
- Boost
- Number of Outputs
- 1
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~6.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.6V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
XT1861 series is a high efficiency, low ripple , high frequency PFM control DC-DC boost converter. XT1861 series requires only three external components, the device can change the low voltage input of battery step-up into output voltages for electronic devices.
Applications
- 1 to 3 batteries of electronic equipment
- Electronic dictionaries, digital cameras
- LED flashlights, LED Light
- Blood pressure monitors, MP3, remote control toys, Wireless headsets, wireless mouse, keyboard
- Medical devices, anti-lost alarm, Car alarm, charger, VCR, PDA and other handheld electronic devices
Key features
- Maximum efficiency: 94%
- Maximum operating frequency: 300KHz
- Low Quiescent Current: 15µA
- Output Voltage: 1.8V~5.0 V (step 0.1V)
- Output Accuracy: ± 2.5%
- Input voltage: 0.9V~6.5V
- low ripple and low noise
- Small volume
