XTXDatasheet (PDF)

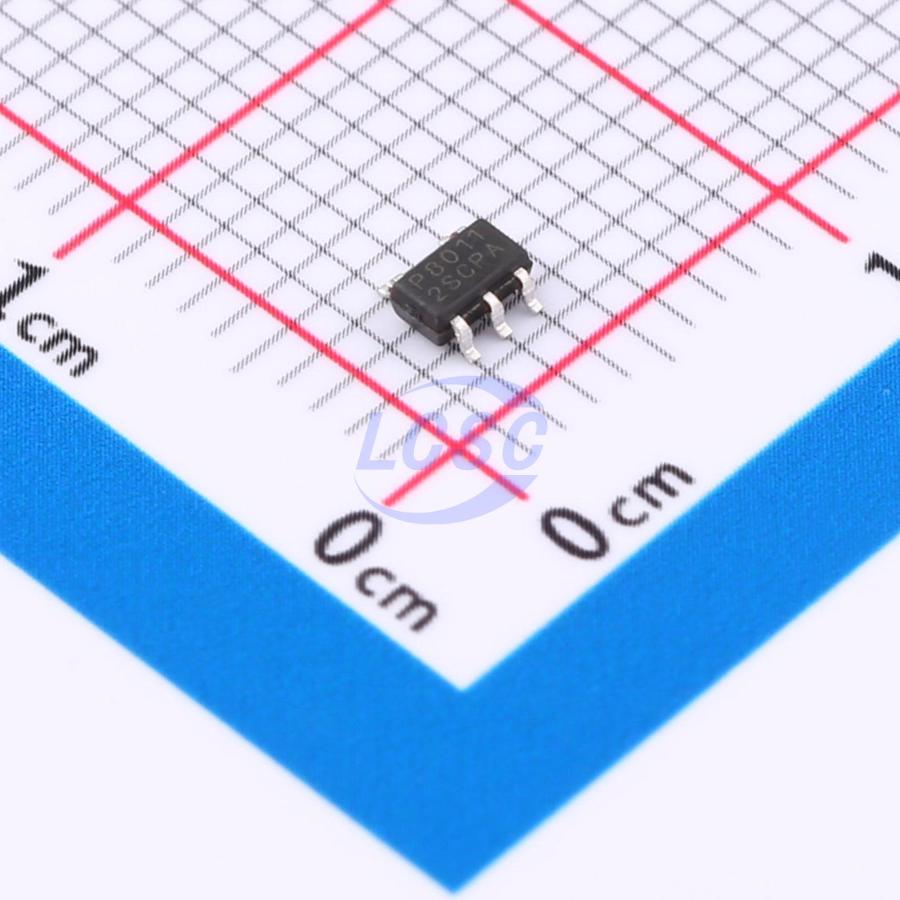

XTP8011AS2CT
Buck Switching Regulator IC 1A SOT-23-5
SOT-23-5ROHS CompliantActive
IC REG BUCK 1A SOT-23-5
- Manufacturer
- XTX
- Manufacturer part #
- XTP8011AS2CT
- Store part #
- C7422305
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,385 in stock
#C7422305
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.38 | ₹56.90 |
| 50+ | ₹8.86 | ₹443.00 |
| 150+ | ₹7.62 | ₹1,143.00 |
| 500+ | ₹6.67 | ₹3,335.00 |
| 3,000+ | ₹6.07 | ₹18,210.00 |
| 6,000+ | ₹5.70 | ₹34,200.00 |
5 × ₹11.38
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XTP8011AS2CT
₹56.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+165℃
- Number of Outputs
- 1
- Frequency - Switching
- 2MHz
- Function
- Step-down type
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
XTP8011 is a high-efficiency monolithic synchronous buck regulator featuring a constant-frequency, current-mode architecture. The device is available in an adjustable output version. Quiescent current is 70μA at no load, dropping to <1μA in shutdown. The 2.5V to 5.5V input voltage range makes it ideal for single-cell Li-ion battery-powered applications. 100% duty cycle provides low dropout operation to extend battery life in portable systems. PWM/PFM mode operation delivers ultralow output ripple voltage for noise-sensitive applications. The switching frequency is internally set at 2MHz, allowing the use of small surface-mount inductors and capacitors. The 0.6V feedback reference voltage makes it easy to support low output voltages.
Applications
- Cellular phones and smartphones
- Wireless and DSL modems
- Portable instruments
- Digital cameras and camcorders
- PC cards
Key features
- High efficiency: up to 96%
- 2.5V to 5.5V input voltage range
- 2MHz constant frequency operation
- Low dropout operation: 100% duty cycle
- PFM mode at light load for high efficiency
- Over-temperature protection
- Low quiescent current: 70μA
- Short-circuit protection
- Overvoltage protection
- Inrush current limiting and soft-start
- RoHS and halogen-free compliant
- SOT23-5L package
