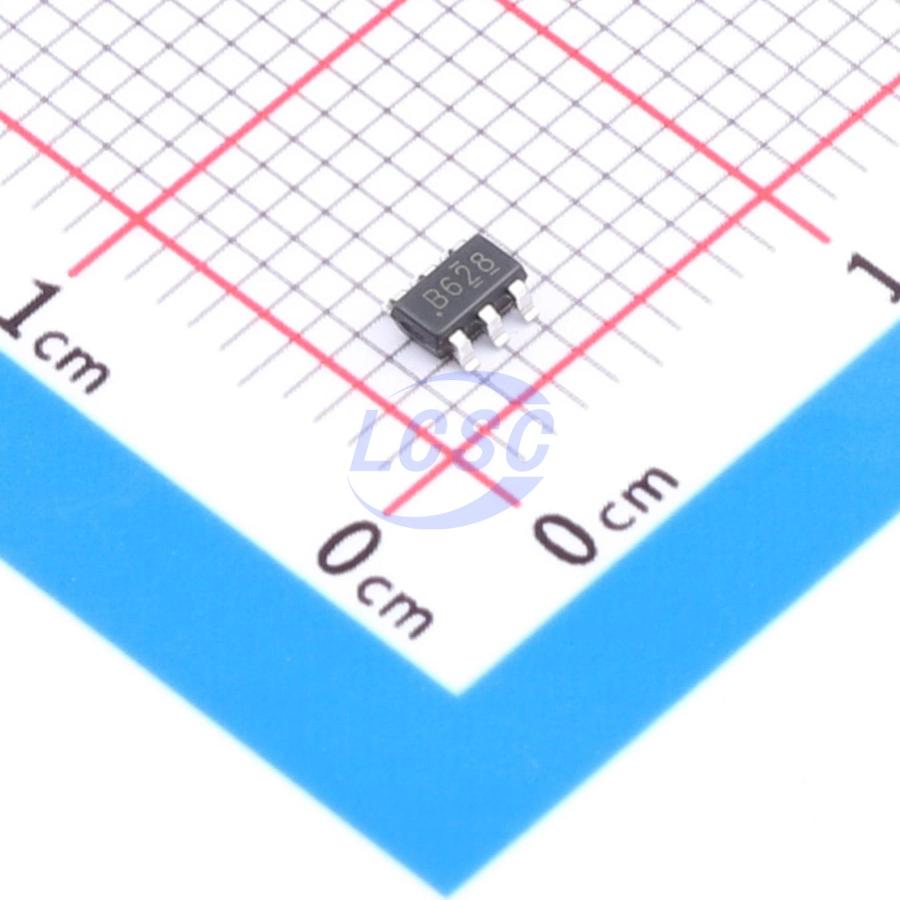

YONGYUTAI

Y3608

Boost Switching Regulator IC Adjustable 2.5V~28V 1 Output SOT-23-6L

SOT-23-6LRoHSActive

High Efficiency Step Up Regulator

Manufacturer: YONGYUTAI
Manufacturer part #: Y3608
Store part #: C48686197
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,805 in stock

#C48686197

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.41	₹77.05
50+	₹12.18	₹609.00
150+	₹10.57	₹1,585.50
500+	₹9.35	₹4,675.00
3,000+	₹8.39	₹25,170.00
6,000+	₹7.91	₹47,460.00

Quantity (min 5, multiples of 5)

5 × ₹15.41

₹77.05

excl. GST

₹90.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

Y3608

₹77.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+80℃
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~28V
Quiescent Current: 100uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.07 g

Overview

The Y3608 is a constant-frequency, current-mode boost converter in a 6-pin SOT23-6 package, designed for small, low-power applications. The device switches at 1.2MHz, allowing the use of small, low-cost capacitors and inductors. Internal soft-start reduces inrush current and extends battery life. The Y3608 features automatic switching to pulse frequency modulation (PFM) mode under light load conditions. The device incorporates UVLO, current limiting, and thermal overload protection to prevent damage during output overload. Efficiency reaches up to 93%. Key features include adjustable output voltage, thermal shutdown, and automatic PFM mode under light load.
