ZynalogDatasheet (PDF)

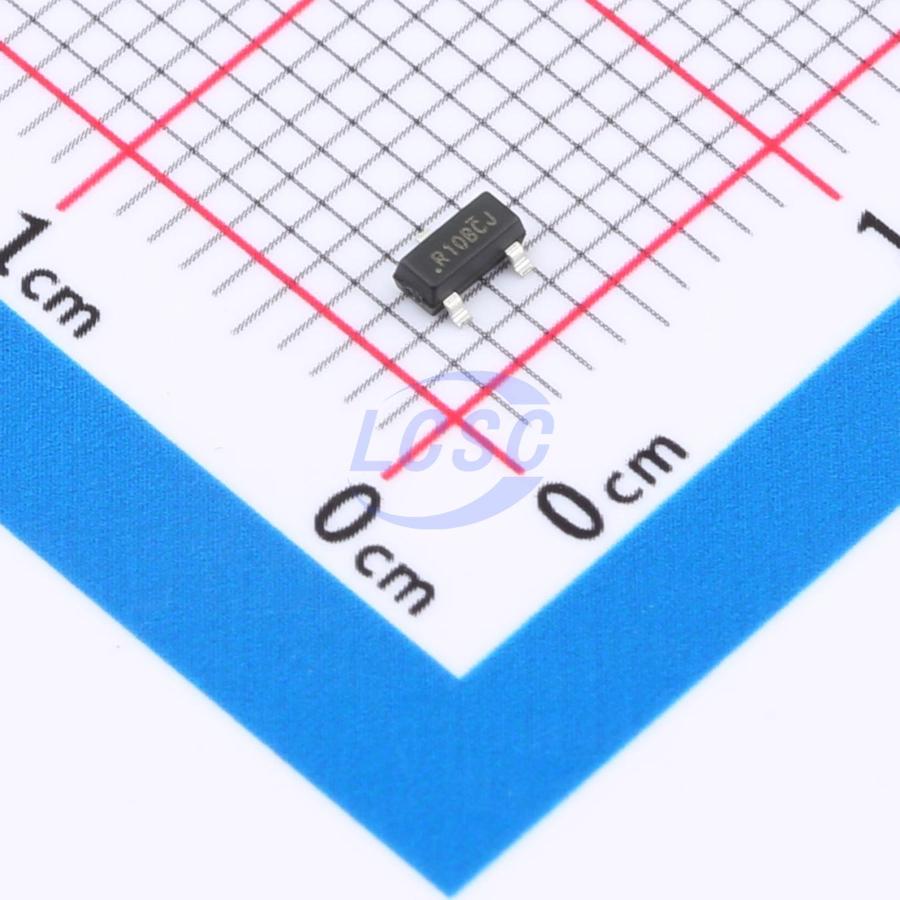

ZGR1018AG1
Voltage Reference IC 1.8V ±0.2% 10mA SOT-23-3
SOT-23-3RoHSActive
IC VREF ±0.2% SOT-23-3
- Manufacturer
- Zynalog
- Manufacturer part #
- ZGR1018AG1
- Store part #
- C47993601
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,141 in stock
#C47993601
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.93 | ₹66.93 |
| 10+ | ₹53.25 | ₹532.50 |
| 30+ | ₹47.38 | ₹1,421.40 |
| 100+ | ₹39.99 | ₹3,999.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹66.93
₹66.93
excl. GST
₹78.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZGR1018AG1
₹66.93 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Quiescent Current
- 330uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 1.85V~5.5V
- Noise - 1/10Hz to 10Hz
- 15uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Output Type
- Fixed
- Noise - 10Hz to 10kHz
- 45uVrms
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
ZGR10XX is a high-precision voltage reference series. Featuring a compact SOT23 package, it delivers best-in-class load regulation of 7.5ppm/mA, line regulation of 4ppm/V, and initial accuracy of ±0.2%. Its 100uF capacitive load capability and 2ppm/mA load regulation at -10mA output current make it particularly well-suited for use as a reference voltage source in ADC and DAC applications.
Applications
- Temperature and pressure sensors
- Data acquisition systems
- Precision test and measurement instruments
- Medical devices
- Portable battery-powered devices
- Automotive-grade DC/DC converters
Key features
- Compliant with automotive-grade application standards:
- Operating temperature: -40°C to 125°C
- Device HBM ESD classfication level 2
- Device CDM ESD classfication level C6
- Initial output accuracy: ±0.2% (max)
- Line regulation: 4 ppm/V
- Load regulation: 7.5 ppm/mA
- Temperature drift coefficient: 30 ppm (max)
- Output current: ±10mA
- Output voltage: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V
- Package: SOT23-3 / SOT23-5 / SOT23-6
