VISHAYDatasheet (PDF)

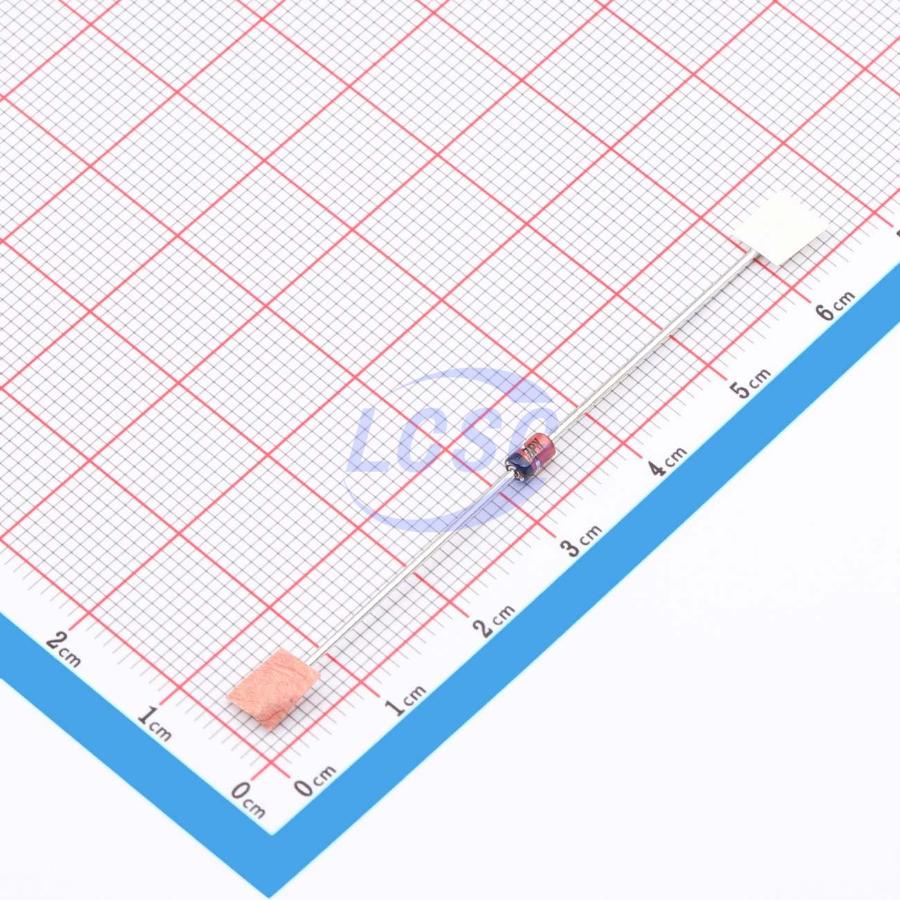

ZPY10-TR
1 Independent 9.4V~10.6V 10V DO-204AL(DO-41) Single Zener Diodes RoHS
DO-204AL(DO-41)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- ZPY10-TR
- Store part #
- C6623240
- Package / case
- DO-204AL(DO-41)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C6623240
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.41 | ₹77.41 |
| 10+ | ₹62.23 | ₹622.30 |
| 30+ | ₹54.64 | ₹1,639.20 |
| 100+ | ₹47.06 | ₹4,706.00 |
| 500+ | ₹42.72 | ₹21,360.00 |
| 1,000+ | ₹40.34 | ₹40,340.00 |
1 × ₹77.41
₹77.41
excl. GST
₹91.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ZPY10-TR
₹77.41 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 500nA@7.5V
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 9.4V~10.6V
- Zener Voltage(Nom)
- 10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.33 g
Overview
Key features
- Silicon planar power Zener diode
- Voltage regulation and clipping circuits for high power ratings
- Zener voltage graded to international E12 standard
- Also available in MELF package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX85C10-TAP#C6756424VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | On request | ₹10.69 · 0 in stock | View |
 | BZX85B10#C5186071LGE · DO-41 | LGE | DO-41 | 3,285 | ₹11.74 · 3,285 in stock | View |
 | BZX85C10#C890276onsemi · DO-41 | onsemi | DO-41 | 10 | ₹22.45 · 10 in stock | View |
 | 1N5925BRLG#C154628onsemi · DO-41 | onsemi | DO-41 | 110 | ₹30.56 · 110 in stock | View |
 | 1N4740APF#C22393279ST(Semtech) · DO-41 | ST(Semtech) | DO-41 | 225 | ₹4.56 · 225 in stock | View |
