DIODESDatasheet (PDF)

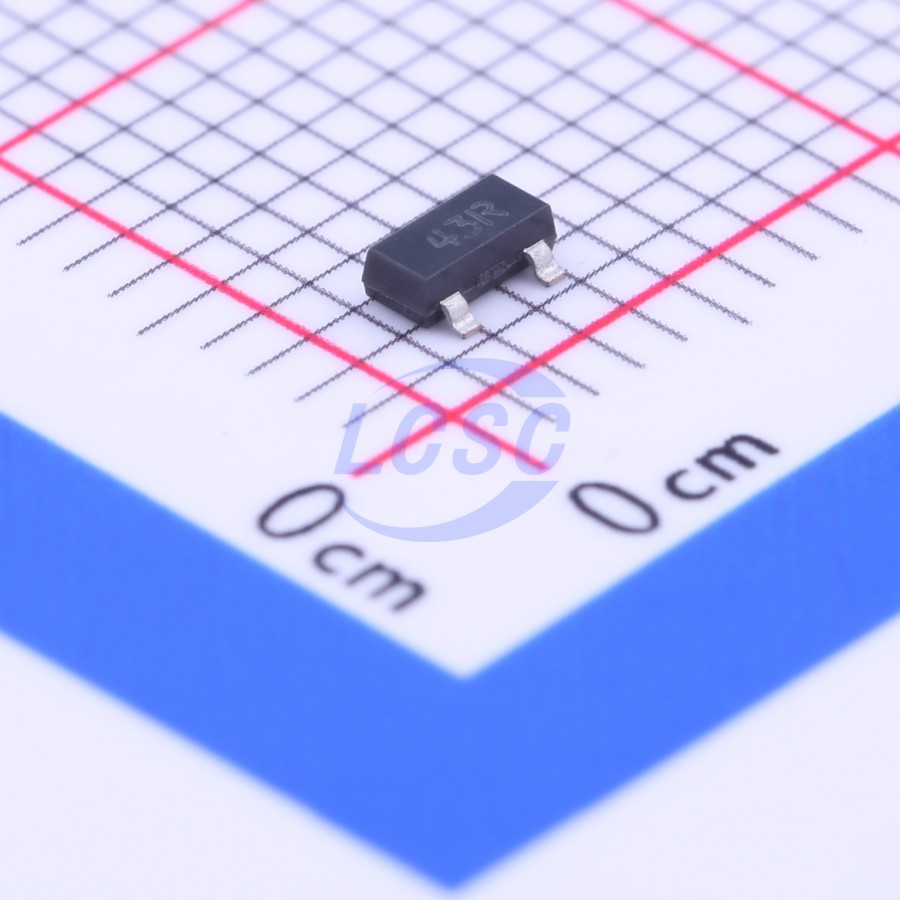

ZR431F005TA
2.5V~20V ±0.5% 2.5V~20V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Adjustable Precision Zener Shunt Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- ZR431F005TA
- Store part #
- C141325
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,310 in stock
#C141325
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.66 | ₹82.66 |
| 10+ | ₹66.79 | ₹667.90 |
| 30+ | ₹59.83 | ₹1,794.90 |
| 100+ | ₹51.35 | ₹5,135.00 |
| 500+ | ₹47.64 | ₹23,820.00 |
| 1,000+ | ₹41.33 | ₹41,330.00 |
1 × ₹82.66
₹82.66
excl. GST
₹97.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZR431F005TA
₹82.66 for 1 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~20V
- Minimum Cathode Current for Regulation
- 50uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The ZR431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 20 volts by selection of two external divider resistors. The devices can be used as a replacement for Zener diodes in many applications requiring an improvement in Zener performance.
Applications
- Shunt regulators
- Series regulators
- Voltage monitors
- Overvoltage/undervoltage protections
- Switch mode power supplies
Key features
- Surface-Mount SOT223 and SOT23 Packages
- 2%, 1% and 0.5% Tolerance
- Max. Temperature Coefficient 72ppm/°C
- Temperature Compensated for Operation Over the Full Temperature Range
- Programmable Output Voltage
- 50μA to 100mA Current Sink Capability
- Low Output Noise
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM431ACM3X-TP#C42407093TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 4,040 | ₹11.07 · 4,040 in stock | View |
 | ZTL431BFTA#C460624DIODES · SOT-23 | DIODES | SOT-23 | 200 | ₹34.69 · 200 in stock | View |
 | SPX2431AM-L/TR#C94430MaxLinear · SOT-23 | MaxLinear | SOT-23 | 8,575 | ₹25.68 · 8,575 in stock | View |
