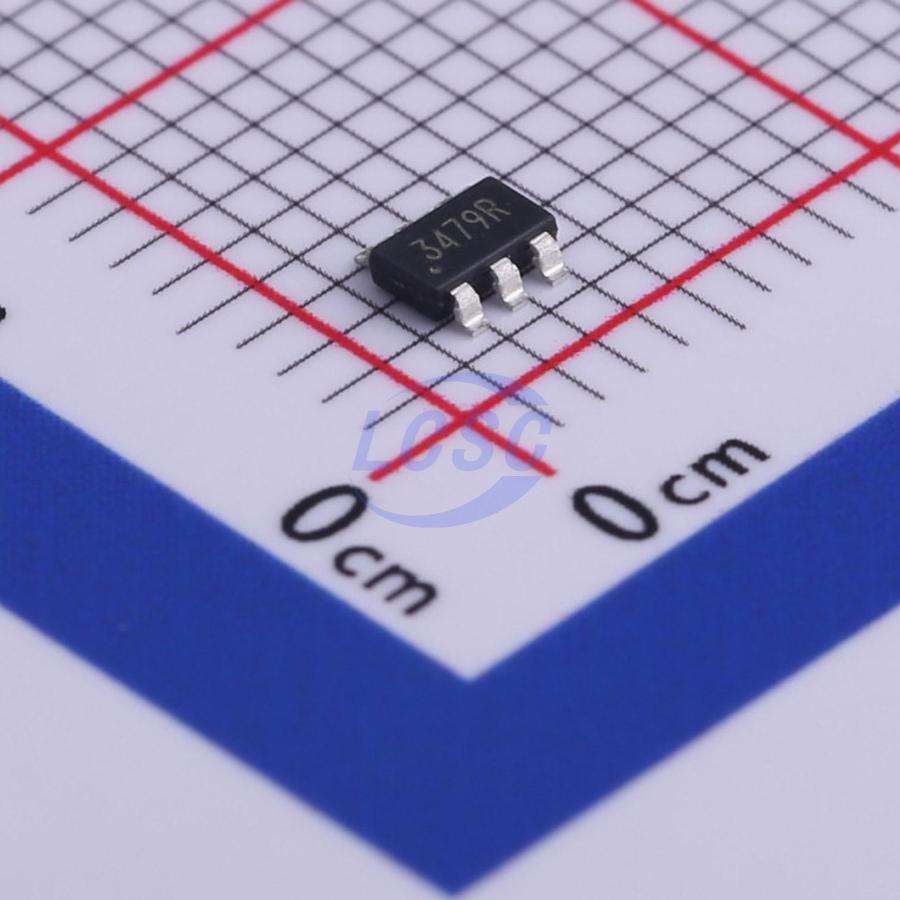

ZTP7192YH
Step-down type 1MHz Adjustable 600mV~15V 2A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
2A, 18V, 1MHz Synchronous Step-Down DC/DC Converter
- Manufacturer
- ZILLTEK
- Manufacturer part #
- ZTP7192YH
- Store part #
- C481278
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C481278
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.00 | ₹70.00 |
| 50+ | ₹11.14 | ₹557.00 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.64 | ₹4,320.00 |
| 3,000+ | ₹7.79 | ₹23,370.00 |
| 6,000+ | ₹7.36 | ₹44,160.00 |
5 × ₹14.00
₹70.00
excl. GST
₹82.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZTP7192YH
₹70.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 1MHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.7V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~15V
- Output Current
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The ZTP7192YH is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation. The ZTP7192YH has synchronous-mode operation for higher efficiency over the output current-load range. Current-mode operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The ZTP7192YH requires a minimal number of readily available, standard external components and is available in space-saving TSOT23-6L package.
Applications
- Distributed power systems
- Networking systems
- FPGA, DSP, ASIC power supplies
- Notebook computers
- Green electronics or appliance
Key features
- 4.7V to 18V input voltage
- Output adjustable from 0.6V to 15V
- Output current up to 2A
- Integrated 140mΩ/90mΩ power MOSFET switches
- Shutdown current 3μA typical
- Efficiency up to 95%
- Fixed frequency 1MHz
- Internal soft start
- Over current protection and Hiccup
- Over temperature protection
- RoHS Compliant and 100% Lead (Pb) Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZTP7193YH#C481281ZILLTEK · TSOT-23-6L | ZILLTEK | TSOT-23-6L | 735 | ₹16.83 · 735 in stock | View |
 | ZTP7192Y#C481277ZILLTEK · TSOT-23-6L | ZILLTEK | TSOT-23-6L | 2,975 | ₹14.51 · 2,975 in stock | View |
 | ZTP7193Y#C481280ZILLTEK · TSOT-23-6L | ZILLTEK | TSOT-23-6L | 985 | ₹17.71 · 985 in stock | View |
 | TD8113X#C5308001JingYang · SOT-23-6 | JingYang | SOT-23-6 | 4,710 | ₹36.20 · 4,710 in stock | View |
 | ZTP7195C#C5155189ZILLTEK · SOT-23-6 | ZILLTEK | SOT-23-6 | 3,415 | ₹21.42 · 3,415 in stock | View |
