ZILLTEKDatasheet (PDF)

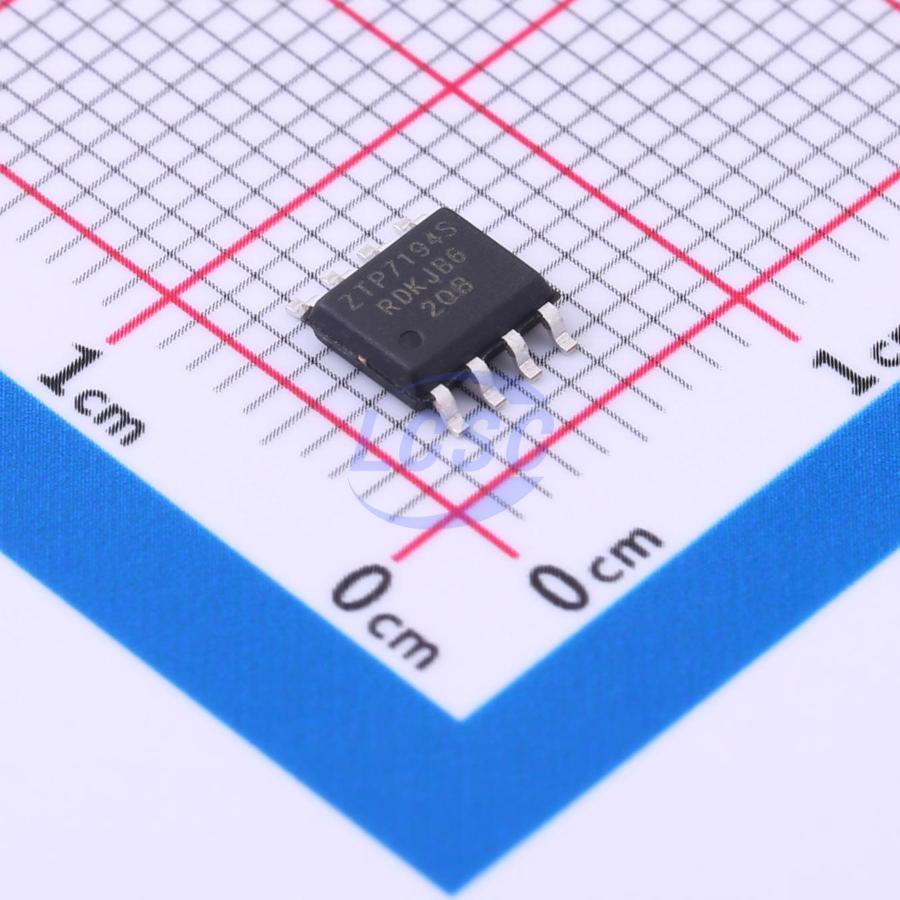

ZTP7194SH
800kHz Step-down type Adjustable 4A 800mV~15V SOP-8L Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8LROHS CompliantActive
4A, 18V, 800KHz Synchronous Step-Down DC/DC Converter
- Manufacturer
- ZILLTEK
- Manufacturer part #
- ZTP7194SH
- Store part #
- C5155188
- Package / case
- SOP-8L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,365 in stock
#C5155188
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.00 | ₹80.00 |
| 50+ | ₹14.10 | ₹705.00 |
| 150+ | ₹13.30 | ₹1,995.00 |
| 500+ | ₹12.28 | ₹6,140.00 |
| 2,500+ | ₹11.30 | ₹28,250.00 |
| 4,000+ | ₹11.02 | ₹44,080.00 |
5 × ₹16.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ZTP7194SH
₹80.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 800kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 800mV~15V
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The ZTP7194SH is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 4A continuous output current over a wide input supply range, with excellent load and line regulation. The ZTP7194SH has synchronous-mode operation for higher efficiency over the output current-load range. Current-mode operation provides fast transient response and eases loop stabilization. Protection features include over-current protection and thermal shutdown. The ZTP7194SH requires a minimal number of readily available, standard external components and is available in a space-saving SOP-8L(EP) package.
Applications
- Distributed power systems
- Networking systems
- FPGA, DSP, ASIC power supplies
- Notebook computers
- Green electronics or appliance
Key features
- 4.5V to 18V input voltage
- Output adjustable from 0.8V to 15V
- Output current up to 4A
- Integrated 85mΩ/45mΩ power MOSFET switches
- Shutdown current 3μA typical
- Efficiency up to 95%
- Fixed frequency 800KHz
- Internal soft start
- Over current protection and Hiccup
- Over temperature protection
- RoHS Compliant and 100% Lead (Pb) Free
