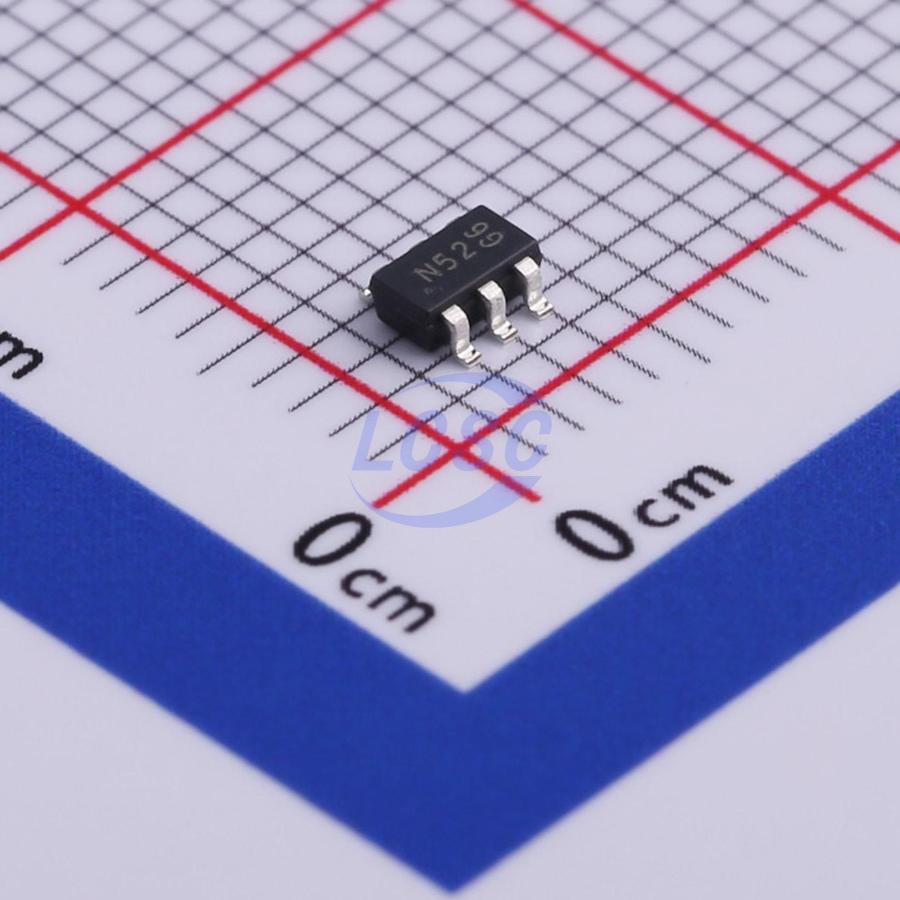

ZVN4525E6TA
N-Channel 250V 230mA 1.1W Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET N-CH 250V 230mA SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN4525E6TA
- Store part #
- C508256
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57 in stock
#C508256
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.55 | ₹158.55 |
| 10+ | ₹135.67 | ₹1,356.70 |
| 30+ | ₹124.36 | ₹3,730.80 |
| 100+ | ₹113.04 | ₹11,304.00 |
| 500+ | ₹98.22 | ₹49,110.00 |
| 1,000+ | ₹94.74 | ₹94,740.00 |
1 × ₹158.55
₹158.55
excl. GST
₹187.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZVN4525E6TA
₹158.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 11pF
- Current - Continuous Drain(Id)
- 230mA
- Ciss-Input Capacitance
- 72pF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 3.6pF
- RDS(on)
- 5.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
This 250V enhanced N-channel MOSFET offers users competitive specifications. It features efficient power handling capability, high impedance, and is free from thermal runaway and thermally-induced secondary breakdown.
Applications
- Telecom and general high-voltage circuits
- Ground start and dial switches
- Electronic off-hook switches
- High-voltage power MOSFET drivers
- Telecom call routers
- Solid-state relays
Key features
- High voltage
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- Complementary P-channel ZVP4525E6
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
