VBsemi ElecDatasheet (PDF)

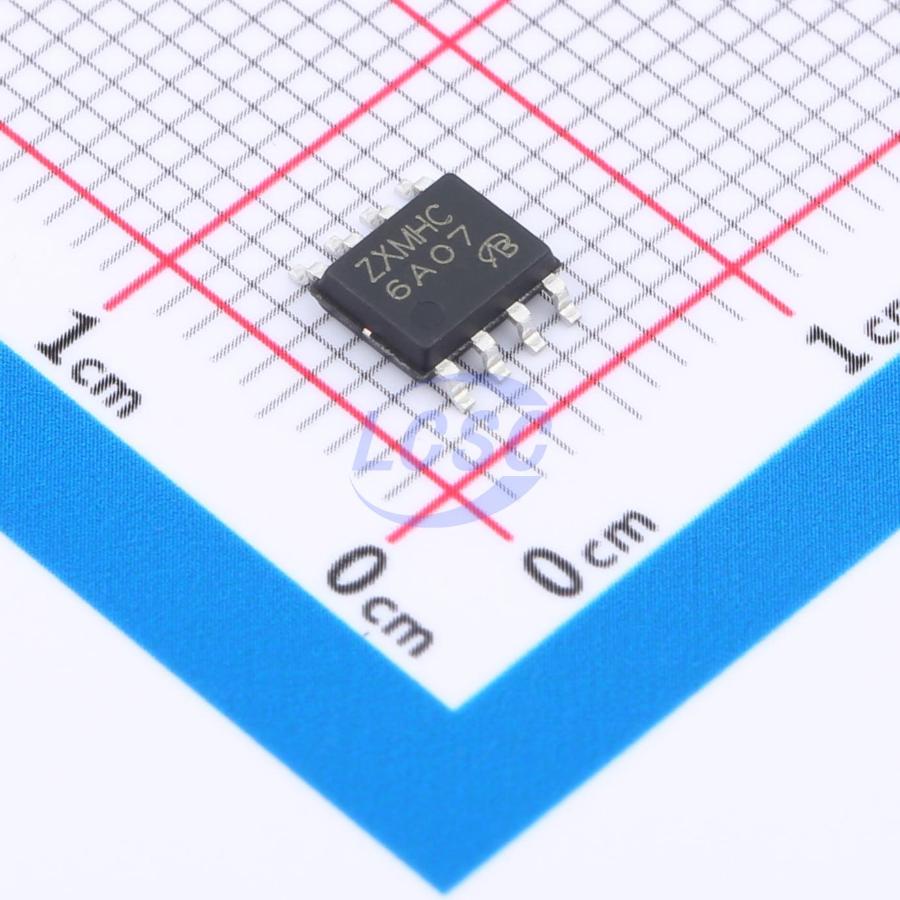

ZXMHC6A07T8TA-VB
N-Channel+P-Channel 60V 5.3A 3.4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ZXMHC6A07T8TA-VB
- Store part #
- C19626668
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C19626668
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.92 | ₹85.92 |
| 10+ | ₹69.75 | ₹697.50 |
| 30+ | ₹61.76 | ₹1,852.80 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹85.92
₹85.92
excl. GST
₹101.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ZXMHC6A07T8TA-VB
₹85.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 95pF
- Current - Continuous Drain(Id)
- 5.3A;4.9A
- Ciss-Input Capacitance
- 665pF
- Pd - Power Dissipation
- 3.1W;3.4W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 26mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free product compliant with IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free version available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEM6080-VB#C22389456VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹82.56 · 20 in stock | View |
 | FW356-TL-E-VB#C19632185VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 47 | ₹82.56 · 47 in stock | View |
 | DMC6040SSDQ-13-VB#C50386987VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹89.99 · 10 in stock | View |
 | SI4534DY-T1-GE3-VB#C51822583VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹93.66 · 10 in stock | View |
 | DMC4028SSD-VB#C19632106VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹82.56 · 40 in stock | View |
