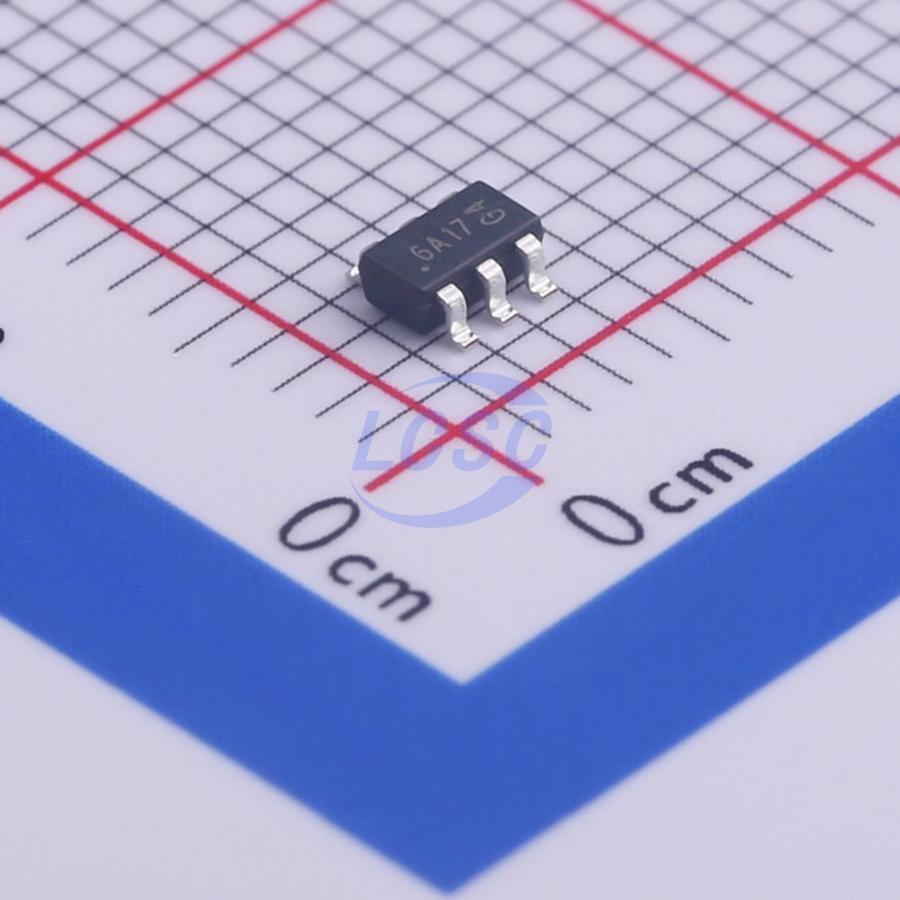

ZXMP6A17E6QTA
P-Channel 60V 2.4A 8.8W Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET P-CH 60V 2.4A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP6A17E6QTA
- Store part #
- C460126
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82 in stock
#C460126
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.51 | ₹40.51 |
| 10+ | ₹28.72 | ₹287.20 |
| 30+ | ₹22.74 | ₹682.20 |
| 100+ | ₹16.95 | ₹1,695.00 |
| 500+ | ₹13.44 | ₹6,720.00 |
| 1,000+ | ₹11.58 | ₹11,580.00 |
1 × ₹40.51
₹40.51
excl. GST
₹47.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMP6A17E6QTA
₹40.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 637pF
- Pd - Power Dissipation
- 8.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 2.4A
- Reverse Transfer Capacitance (Crss)
- 53pF
- RDS(on)
- 190mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17.7nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Disconnect Switches
- Motor Control
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Low Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability PPAP Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMP6A17E6TA#C2959859TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,535 | ₹23.95 · 3,535 in stock | View |
 | SI3459BDV#C2987067TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 4,190 | ₹30.06 · 4,190 in stock | View |
 | ZXMP6A17E6TA#C140565DIODES · SOT-26 | DIODES | SOT-26 | 5,350 | ₹54.45 · 5,350 in stock | View |
 | UPA1918TE#C2987069TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,755 | ₹28.11 · 1,755 in stock | View |
 | STT2PF60L#C2959863TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 860 | ₹24.61 · 860 in stock | View |
