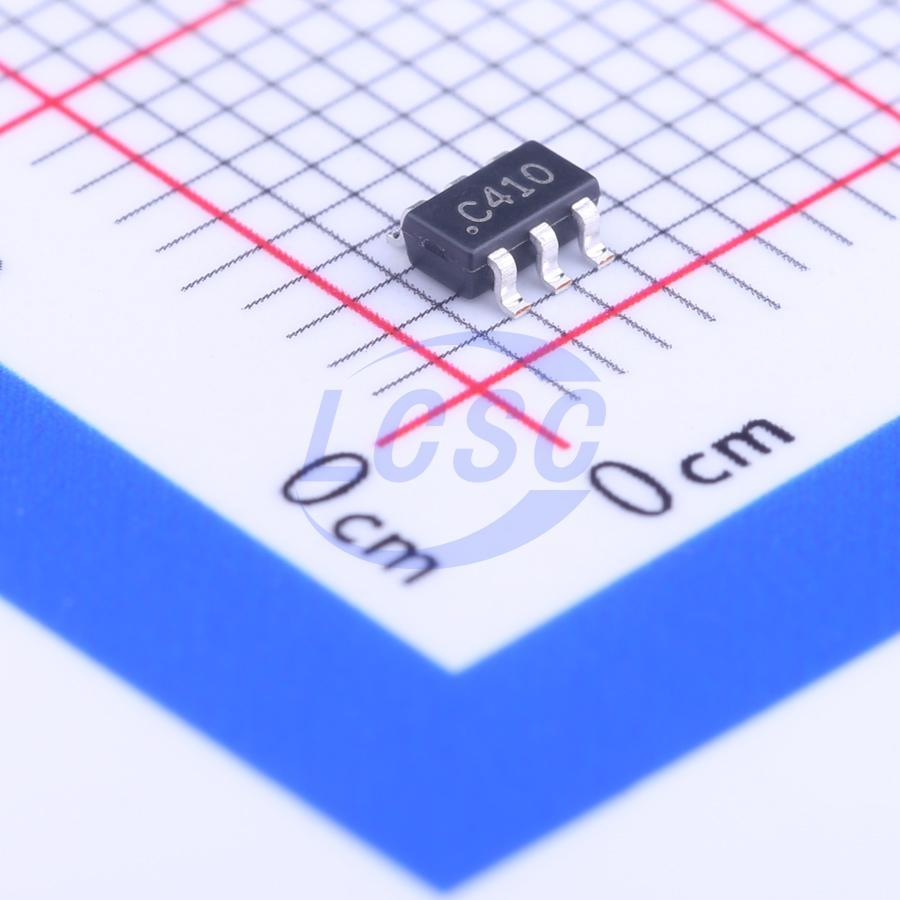

ZXSC410E6TA
300mA 1 Adjustable Boost SOT-23-6 DC DC Switching Controllers RoHS
DC-DC Boost Switching Controllers
- Manufacturer
- DIODES
- Manufacturer part #
- ZXSC410E6TA
- Store part #
- C128641
- Package / case
- SOT-23-6
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,851 in stock
#C128641
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.06 | ₹71.06 |
| 10+ | ₹59.55 | ₹595.50 |
| 30+ | ₹53.67 | ₹1,610.10 |
| 100+ | ₹47.81 | ₹4,781.00 |
| 500+ | ₹44.56 | ₹22,280.00 |
| 1,000+ | ₹42.60 | ₹42,600.00 |
1 × ₹71.06
₹71.06
excl. GST
₹83.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXSC410E6TA
₹71.06 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection
- Output Current
- 300mA
- Number of Channels
- 1
- Topology
- Boost
- Frequency - Switching
- 1.7kHz~200kHz
- Operating Voltage
- 1.65V~8V
- Output Type
- Adjustable
- Switch tube (built-in/external)
- External
- Function
- Boost
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The ZXSC410/420/440 are DC-DC boost controllers. Their wide input voltage range makes them suitable for operation for a number of battery configurations including single Li-Ion cell and 2~3 alkaline/NiCd/NiMH cells. Using high gain Diodes Zetex-brand switching npn-transistors allows high-voltage boost ratios and/or high output current depending on the transistor. The ZXSC410/440 has a shutdown feature that can also be used for some dimming functionality. ZXSC420/440 includes an End of Regulation flag that can be used to indicate when the regulator is no longer able to maintain the regulated output voltage/current or has reached the required current/voltage. The ZXSC440 combines the features of the ZXSC410 and ZXSC420 into one device.
Applications
- System Power for Battery Portable Products
- LCD Bias
- Local Voltage Conversion
- High-Brightness LED Driving
Key features
- 1.65V to 8V Supply Range
- Typical Output Regulation of ±1%
- Over 85% Typical Efficiency Output Currents Up to 300mA
- 4.5μA Typical Shutdown Current ZXSC410/440
- End of Regulation Output ZXSC420/440
- Available in SOT26 and MSOP-8
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
