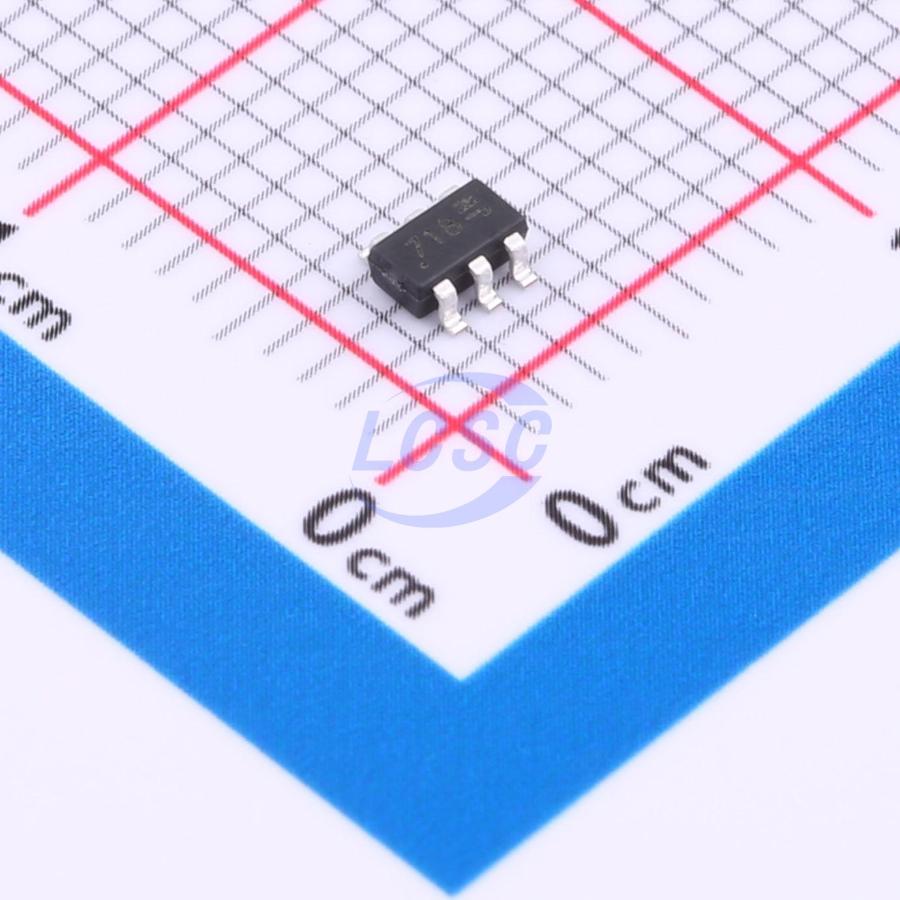

DIODES

ZXT10P20DE6TA

Bipolar (BJT) Transistor PNP 53V 2.5A 180MHz 1.1W Surface Mount SOT-26

SOT-26ROHS3 CompliantSold out at source

TRANS PNP 53V 2.5A SOT-26

Manufacturer: DIODES
Manufacturer part #: ZXT10P20DE6TA
Store part #: C3196903
Package / case: SOT-26
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C3196903

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹16.82	₹84.10
50+	₹16.59	₹829.50
150+	₹16.44	₹2,466.00
500+	₹16.29	₹8,145.00

Quantity (min 5, multiples of 5)

5 × ₹16.82

₹84.10

excl. GST

₹99.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZXT10P20DE6TA

₹84.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Transition frequency(fT): 180MHz
Collector - Emitter Voltage VCEO: 53V
Emitter-Base Voltage VEBO: 8.8V
DC Current Gain: 300
Current - Collector(Ic): 2.5A
Pd - Power Dissipation: 1.1W
Configuration: Standalone
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 250mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.054 g

Overview

Applications

DC-DC Converters
Power Management Functions
Power Switches
Motor Control

Key features

BVCEO > -20V
10 = -2.5A Continuous Collector Current
ICM = -6A Peak Pulse Current
RCE(sat) = 96mΩ for a Low Equivalent On-Resistance
Low Saturation Voltage (-220mV max @ 1A)
hFE Characterized up to -6A for High Current Gain Hold-Up
Totally Lead-Free & Fully RoHS compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	PBSS303PD-QX#C20235710Nexperia · TSOP-6	Nexperia	TSOP-6	On request	₹40.75 · 0 in stock	View
